Yamaha MS45DR - Compact 2.1 Electronic Drum Monitor System
Yamaha MS45DR - Compact 2.1 Electronic Drum Monitor System - Image 2
Yamaha MS45DR - Compact 2.1 Electronic Drum Monitor System - Image 3
Yamaha MS45DR - Compact 2.1 Electronic Drum Monitor System - Image 4

Yamaha MS45DR – Compact 2.1 Electronic Drum Monitor System

Add to wishlist
Compare

$230.00

Estimated delivery on 17 August - 28 September, 2025
Compare

Items Included

  • Yamaha MS45DR – Compact 2.1 Electronic Drum Monitor System
  • 2 x Pipe Clamps (for Satellites)
  • Combination Cable
  • Cable Band
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Highly Realistic Sound
  • Two Satellites (20W + 20W)
  • 20W Subwoofer
  • 40 Hz to 20 kHz Frequency Range

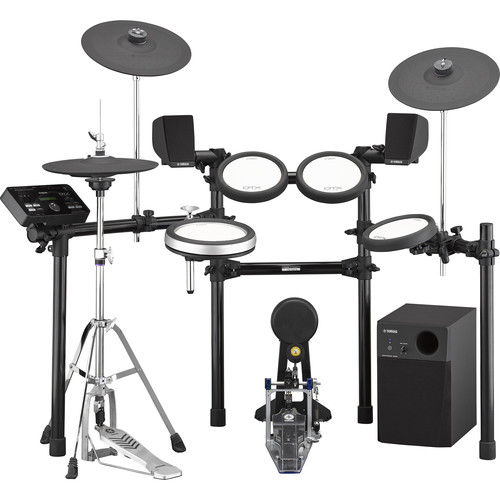

  • Satellites Mount to Drum Kit
  • Master Volume Control on Subwoofer
  • Includes Easy Connection Cable

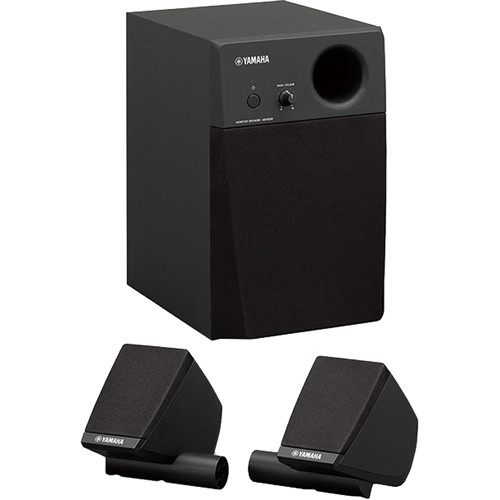

The Yamaha MS45DR is a 2.1-channel electronic drum-monitor system, well suited for home use or practice sessions. The system is comprised of a single powered subwoofer and two mountable 2-way satellite speakers. Each speaker is powered by a 20W amplifier, combining to offer a frequency response of 40 Hz to 20 kHz (-10 dB). The MS45DR includes a combination cable featuring an 8-pin DIN connector, which breaks out into stereo 1/4″ and stereo RCA for connecting to the satellites and to your separately available drum module. Two pipe clamps, a power cord, and a cable band are also included.

  • 2.1-channel stereo monitor system for highly-realistic sound
  • Two mountable 2-way satellite speakers (20W + 20W)
  • 6.5″ powered subwoofer (20W)
  • Cables included
Category:
Connectors
Power Input

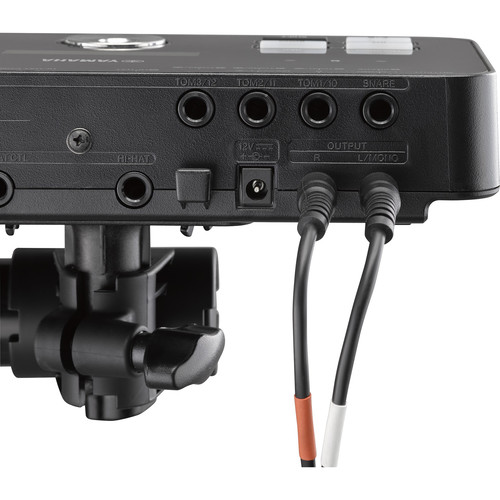

Combination Cable: 8-Pin DIN to Stereo 1/4″ / 3.5 mm TS and Stereo RCA
Controls
Front Panel:
Standby/On Switch
Bass Volume Control

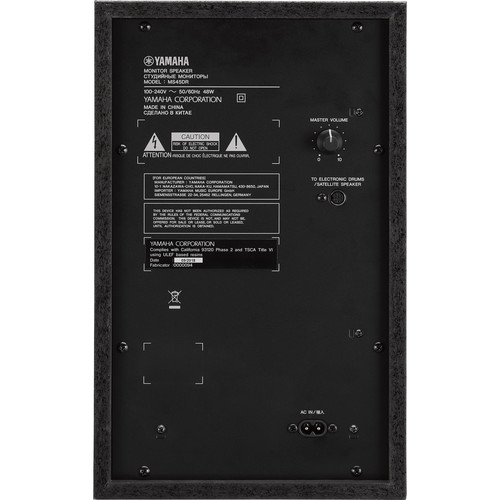

Rear Panel:
Master Volume Control
Combination Cable Input
Output Power
Satellite Speakers: 20 W + 20 W (2 kHz, 4 Ohms)
Subwoofer: 20 W (60 Hz, 8 Ohms)
Frequency Response
Satellite Speakers / Subwoofer Speaker: 40 Hz to 20 kHz (-10 dB)
Speakers
Satellite Speakers
Tweeter: 0.8″ / 2 cm Dome (5 Ohms)
Midrange: 3″ / 8 cm Cone (4.5 Ohms)

Subwoofer: 6.5″ / 16 cm Cone (8 Ω)
Power
Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: 24 W
Dimensions
Satellite Speakers: 4.3 x 7.2 x 5.4″ / 11.0 x 18.3 x 13.8 cm (Not Including Holder)
Subwoofer: 8.7 x 13.8 x 13.5″ / 22.1 x 35.1 x 34.3 cm
Weight
Satellite: 2.2 lb / 1.0 kg (Each)
Subwoofer: 14.3 lb / 6.5 kg
Packaging Info
Package Weight
24.56 lb
Box Dimensions (LxWxH)
23.4 x 16.1 x 13.2″
