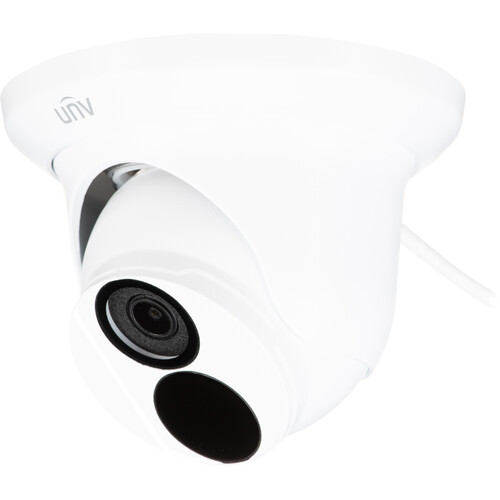

Uniview EC-T4F28M 4MP Outdoor Network Turret Camera with Night Vision
Uniview EC-T4F28M 4MP Outdoor Network Turret Camera with Night Vision - Image 2
Uniview EC-T4F28M 4MP Outdoor Network Turret Camera with Night Vision - Image 3

Uniview EC-T4F28M 4MP Outdoor Network Turret Camera with Night Vision

Add to wishlist
Compare

$146.30

Estimated delivery on 17 August - 28 September, 2025
Compare

Items Included

  • Uniview EC-T4F28M 4MP Outdoor Network Turret Camera with Night Vision
  • Limited 3-Year Manufacturer Warranty
Key Features
  • 2560 x 1440 Resolution at 25 fps
  • IR LEDs for Night Vision up to 98′
  • 2.8mm Fixed Lens
  • 97° Horizontal Field of View
  • Supports microSD Cards up to 128GB
  • RJ45 Ethernet with PoE Technology
  • Complies with ONVIF Profiles G, S & T
  • IP67 Rated for Outdoor Use

Monitor your surroundings with the EC-T4F28M 4MP Outdoor Network Turret Camera from Uniview. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 25 fps. IR LEDs provide up to 98′ of night vision. The camera’s 2.8mm fixed lens delivers a 97° horizontal field of view. An onboard card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for safe outdoor use.

Smart IR
Auto and manual IR on/off control
IR cut filter with auto switch for day and night functionality
Up to four OSDs
Privacy masking for up to four areas
Region of interest for up to 8 areas
Analytics include: cross line detection, intrusion detection (based on human body detection), motion detection for up to four areas, and tampering alarm
Image settings include: image rotation, brightness, saturation, contrast, sharpness, and gain adjustable by web browser
Flipped perspectives include: normal, vertical, horizontal, and 180°
Additional features include: adjustable white balance, digital defog, digital wide dynamic range, 2D-DNR/3D-DNR, >56 dB S/N ratio, highlight compensation, and backlight compensation
Supports ANR and NAS
Compatible with Internet Explorer, Chrome, Firefox, Edge, EZStation, EZView, EZLive, iOS, and Android
Up to 32 users (admin and common user host levels)
4kV surge protection
Category:
Image Sensor
1/3″-Type CMOS
Focal Length
2.8mm
Field of View
Horizontal: 97°
Vertical: 52.2°
Diagonal: 107.5°
Power I/O
1x DC
1x RJ45
Imaging
Number of Lenses
1
Image Sensor
1/3″-Type CMOS
Sensor Resolution
Effective: 4 Megapixel
IR Cut Filter
Yes Mechanical
Day/Night
Yes
DORI Coverage
With 2.8mm Lens:
Detect: At 206.7′ / 63.0 m
Observe: At 82.7′ / 25.2 m
Recognize: At 41.3′ / 12.6 m
Identify: At 20.7′ / 6.3 m
Exposure Control
Minimum Illumination
0.01 Lux (Color)
0 Lux (Black and White)
Lens
Focal Length
2.8mm
Field of View
Horizontal: 97°
Vertical: 52.2°
Diagonal: 107.5°
Maximum Aperture
f/2
Video
Automatic Gain Control
Yes
Video Capture
Max IP Streaming
via RJ45
2560 x 1440 up to 25 fps
2304 x 1296 up to 30.00 fps
Multi-View Streaming
Yes: 2 Streams
Control
Camera Angle Adjustment
Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360°
Networking
Security
Digest Authentication, HTTPS, IP Address Filtering, Password Protection, Watermark
Supported Protocols
ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, API, SDK
Interface
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]
Other I/O
1x RJ45
External Storage Options
NAS
System Integration
Analytics
Virtual-Line Crossing Detection, Intrusion Detection, Motion Detection, Camera Sabotage/Tampering
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Alarm I/O
No
Power
Power I/O
1x DC
1x RJ45
Power Consumption
4
General
Material of Construction
Metal
Environmental Resistance
Dust/Water-Resistant (IP67)
Certifications
FCC (Part 15 Class B), IEC 60950-1, UL
Operating Conditions
-22 to 140°F / -30 to 60°C up to 95% Humidity
Storage Conditions
-22 to 140°F / -30 to 60°C
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
OS Compatibility
Android/iOS
Mobile App Compatible
Yes: Android & iOS
Dimensions (W x H x D)
4.6 x 3.8″ / 118 x 97 mm
Weight
0.93 lb / 0.42 kg (Body Only)
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
6 x 5.5 x 5.3″
