Items Included
- SVS Prime Elevation 2-Way Atmos Add-On Speakers (Premium Black Ash, Pair)
- 2 x Grilles
- Speaker Bracket
- Stick-On Bumper Kit
- Limited 5-Year Manufacturer Warranty
Key Features
- 20 to 150W Recommended Amplifier Power
- 2-Way Speaker Design
- 4.5″ Polypropylene Cone Woofer
- 1″ Aluminum Dome Tweeter
- 55 Hz to 25 kHz Frequency Response
- MDF Cabinet
- Alternate Use in L/C/R Configuration

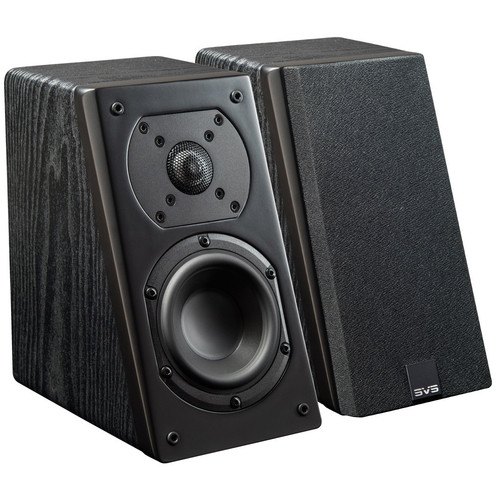

Add height effect channels to your compatible home theater system with this pair of premium black ash SVS Prime Elevation 2-Way Atmos Add-On Speakers. The feature an angled front baffle, so they can be placed on the wall near the ceiling with the included wall mount for height effects without the required sound reflection of up-firing speakers. They use a 1″ aluminum dome tweeter and a 4.5″ polypropylene cone woofer and accept 20 to 150W of power from your amplifier.
Alternative placement options are available, such as low-angle up-firing or side-firing speakers, left-/center-/right-channel configurations with a third Prime Elevation speaker, or left/right setups.
Add Height Effects for Dolby Atmos, DTS:X, and Auro-3D
The Prime Elevation is designed to accurately radiate the height effects of your movies. Place it high on a wall near the ceiling, and object-based surround sound can be enjoyed at full fidelity in nearly any room, without using ceiling bounce or in-ceiling speakers.
Multi-Angle Wall Bracket
The included Multi-Angle Wall Bracket allows for hanging the speaker in any of four directions (up- or down-firing, and side- or rear-firing). Also included is a universal mounting option with a 1/4″-20 brass insert that works with other kits. As a finishing touch, the magnetic SVS logo on the grille is adjustable to accommodate positioning.
Angled Front Baffle
The angled front baffle is designed to deliver enhanced direct radiating height effects and enable versatility in nearly any channel position.
Enhanced Versatility
The angled front baffle and Multi-Angle Wall Bracket combine to add versatility to the Prime Elevation speaker. Engineered to address a multitude of room challenges, the Prime Elevation is well suited for imperfect room placement options:
- Down-firing height-effects speaker – placed high on a side wall, the directly radiated sound is designed to provide more direct sound than “ceiling bounce” solutions.
- Up- or down-firing front, L/C/R (left/center/right) and/or center channel speaker – placed above or below the viewing area, directed at the listener, when placement at ear level isn’t possible.
- Side- or rear-firing surround speaker – placed on a side wall for rear effects, or on the rear wall for side effects, when optimal placement is not possible.
Reinforced, Acoustically Inert Cabinet
The cabinet is designed to be resonance-free, with MDF walls and bracing for enhanced acoustics.
4.5″ Mid-Woofer
The 4.5″ poly midrange/bass woofer features an augmented stiffness-to-mass ratio for accurate dynamics at all drive levels.
Tweeter Designed for Accuracy
The 1″ aluminum dome tweeter uses an FEA-optimized diffuser for clear high frequencies with enhanced transparency and refinement.
SoundMatch Crossover
The SoundMatch crossover is designed to blend tweeter and woofer output for enhanced balance, accuracy, and overall performance across the frequency spectrum.
Additional Driver Features
- Aluminum shorting ring in mid-woofer helps reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket in mid-woofer helps ensure precision component alignment and augmented thermal transfer
- Vented voice coil former minimizes air compression artifacts in mid-woofer
Additional Cabinet Features
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet
- Chamfered front baffle and flush-mounted drivers help reduce edge diffraction and enhance off-axis high-frequency response
| Drivers | |
| Frequency Response | |
| Inputs/Outputs |
Speaker System
| Recommended Amplifier Power | |
| Drivers | |
| Enclosure Type | |
| Frequency Response | |
| Impedance | |
| Inputs/Outputs | |
| Crossover | |
| Sensitivity |
Physical
| Cabinet Material | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
James –
I needed height/atmos speakers for my HT room, but in ceiling speakers weren’t an option, and I am glad they weren’t. These SVS speakers are amazingly good, especially considering their very reasonable cost. I now have height speakers that sound incredibly clear, and I couldn’t be more pleased with the purchase. Good construction, binding posts are solid, and these included a secure wall/ceiling mount, along with a template that made the mounting process easy and quick. These can be used in other HT configurations also (side, surround, etc.).
I now have the SVS height speakers as well as 2 SVS subs. I am so impressed that I may replace my existing speakers with other SVS models.
James –
Michael –
Great sounding and very flexible placement options. Perfect speaker for Atmos.
Michael –
Larry –
These are very good for ATMOS and AURO 3D I have 6 of them for height speakers and they really fill in the top of the room!! Very satisfied.
Larry –
Larry –
I ordered these speakers to complete my A/V surround setup. They were offered at a great price, and the website and ordering/tracking process are well designed and customer focused. The delivery was very fast and the speakers match my other SVS Prime Elevation surrounds which are very high quality from an excellent company.
Larry –
