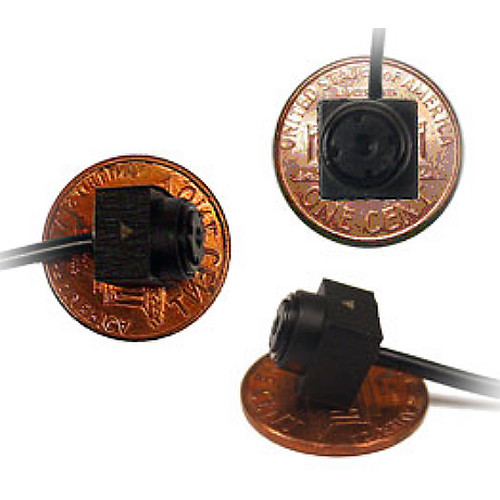

RF-Links 240 TVL B&W Mini Video Indoor Camera with 3.5mm Fixed Lens

RF-Links 240 TVL B&W Mini Video Indoor Camera with 3.5mm Fixed Lens

Add to wishlist
Compare

$349.30

Estimated delivery on 17 August - 28 September, 2025
Compare

Items Included

  • RF-Links 240 TVL B&W Mini Video Indoor Camera with 3.5mm Fixed Lens

The RF Video 240 TVL B&W Mini Video Camera features a 1/4″ sensor and 3.5mm fixed lens for capturing videos at a maximum resolution of 240 TVL. With a minimum illumination requirement of 0.5 lux, it can capture footage in low-light conditions.

Category:
Image Sensor
1/4″
Video System
CCIR / EIA
Number of Effective Pixels
510 x 492 (EIA)
500 x 582 (CCIR)
Scanning System
2:1 interlace
Resolution
240 TVL
S/N Ratio
More than 46 dB
Minimum Illumination
0.5 lux at f/1.4
Electronic Shutter
1/50 to 1/6,000 sec
Sync Frequency
Horizontal: 15.734 kHz (EIA) / 15.625 kHz (CCIR)
Vertical: 60 Hz (EIA) / 50 kHz (CCIR)
Gamma Consumption
0.45
Video Output
V p-p. 75 Ohms composite
Audio Output
20 to 16000 Hz, S/N more than 58 dB (Optional)
Lens
3.5mm/f/2.6
Power Supply
12 VDC
Power Current
20 mA maximum
Storage Temperature
-22 to 140°F (-30 to 60°C)
Working Temperature
14 to 113°F (-10 to 45°C)
Dimensions
0.33 x 0.33 x 0.33″ (8.5 x 8.5 x 8.5 mm)
Weight
0.35 oz (10 g)
