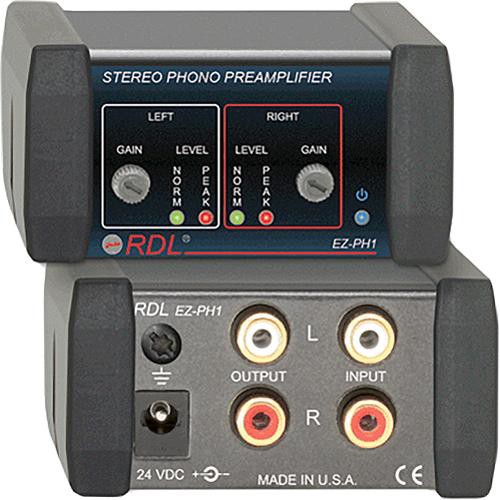

RDL EZ-PH1 Stereo Phono Preamplifier

RDL EZ-PH1 Stereo Phono Preamplifier

(2 customer reviews)
Add to wishlist
Compare

$100.00

Estimated delivery on 3 August - 14 September, 2025
Compare

Items Included

  • RDL EZ-PH1 Stereo Phono Preamplifier (USA Power Supply)
  • Turntable Grounding Screw
  • Limited 3-Year Manufacturer Warranty



Key Features
  • Gold-Plated Stereo RCA Input &Output
  • Adjustable Gain Control
  • RIAA Equalization
  • Includes Turntable Grounding Screw



The EZ-PH1 Stereo Phono Preamplifier from RDL can be used to adjust the output of your turntable to line level. It features gold-plated stereo RCA inputs and outputs, and has front-panel gain control for each input channel. It provides RIAA equalization, and includes a turntable grounding screw and a USA power supply.

Phono Input on Gold-Plated RCA Jacks
Line Output on Gold-Plated RCA Jacks
Front-Panel Gain Trimmer for Each Channel
Dual-LED VU Meter for Each Channel
RIAA Equalization
Turntable Grounding Screw Provided
Gold-Plated Connectors
Adapt Turntable to an Amplifier Line Input
Feed a Turntable into a CD Recorder
Category:
Input
2x Stereo RCA jacks (47 kΩ)
Input Level
-18 dBV, maximum
Gain
Off to +55 dB (1 kHz)
Output
-10 dBV nominal on stereo RCA jacks
Equalization
RIAA
Frequency Response
20 Hz to 20 kHz (±0.75 dB referred to RIAA curve)
Crosstalk
<-75 dB (1 kHz)
Metering
Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
THD + N
<0.05% (20 Hz to 20 kHz, 36 dB gain)
Noise
<-74 dB (36 dB gain, 1 kHz), <-80 dB (36 dB gain, 1 kHz, “A-weighted”)
Current
24 VDC Power Supply Current: 30 mA (idle), 45 mA (maximum)
Dimensions
2.7 x 2.8 x 1.5″ (7.0 x 7.2 x 3.7 cm)
Packaging Info
Package Weight
0.65 lb
Box Dimensions (LxWxH)
7.2 x 5.1 x 2.4″

Based on 2 reviews

5.0 overall
2
0
0
0
0

Add a review

  1. Israel Smith –

    I purchased this for my husband for Christmas. Our turn table had low sound. This pre-amp was such an improvement. I suggest!!

    Israel Smith –

  2. A. V –

    Some pre-amps now a days don’t have phono inputs. This device solved the problem and works great.

    A. V –
