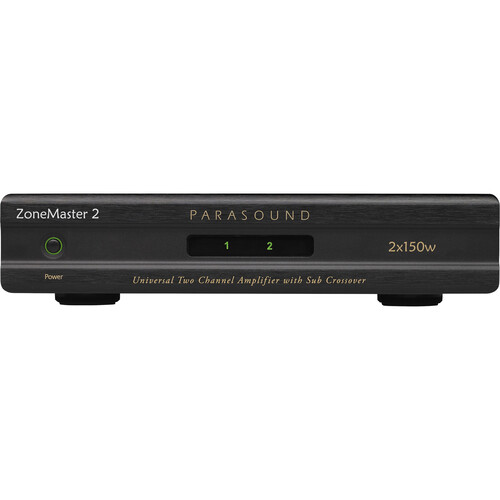

Parasound ZoneMaster ZM2 Compact 2-Channel Amplifier with Subwoofer Crossover
Parasound ZoneMaster ZM2 Compact 2-Channel Amplifier with Subwoofer Crossover - Image 2

Parasound ZoneMaster ZM2 Compact 2-Channel Amplifier with Subwoofer Crossover

Add to wishlist
Compare

$489.00

Estimated delivery on 3 August - 14 September, 2025
Compare
Key Features
  • 120 Watts x 2 at 8 Ohms
  • 4 x Speaker Output Connections: A & B
  • Stereo or Mono Mode
  • Line & Speaker Level Audio Inputs
  • Class AB Input Stage
  • Class-D Power Stage
  • 80 Hz Lowpass Mono RCA Out for Subwoofer
  • Full-Range Stereo & Mono RCA Outputs
  • Auto-On via 12v Trigger or Audio Signal

Items Included

  • Parasound ZoneMaster ZM2 Compact 2-Channel Amplifier with Subwoofer Crossover
  • 2 x 3.5mm 12V Trigger Wire
  • Rack Mount Brackets and Screws
  • Screwdriver for Speaker Output Connectors
  • Screwdriver for Speaker Level Input Connector
  • Limited 3-Year Manufacturer Warranty

Extend the coverage of your main amplifier or receiver, and power additional speakers with the ZoneMaster ZM2 2-Channel Amplifier with Subwoofer Crossover from Parasound. The ZM2 is can deliver 120 watts to two channels at 8 Ohms, providing ample power for passive speakers in secondary listening areas.

This amplifier has outputs for up to four speakers in stereo or mono configuration. For signal it can be connected to line level RCA or speaker level outputs, making the ZM2 a viable distribution amplifier for just about any receiver, stereo system, or amplifier, even if it lacks preamp outputs. Additionally, full-range stereo and mono RCA outs allow for connecting additional amplifiers, and a mono RCA output with 80 Hz crossover is intended for connecting an active subwoofer.

Additional Features
  • Class-AB input stage plus premium Class-D power stage
  • Separate level controls for both channels
  • Audio sensing auto-on trigger
  • 12V auto-on trigger inputs
  • Looping 12V trigger output
  • Detachable speaker connectors accept up to 12-gauge wire
  • Short circuit and overheat protection with front panel indicators
  • ZRK rack mount kit sold separately
Category:
Channels
2.1
Power Output per Channel
2-Channel Driven:
120 W at 8 Ohms
150 W at 4 Ohms
Rear A/V Outputs
1x Stereo RCA Zone 2 Line-Out
1x RCA Zone 2 Line-Out
1x RCA Subwoofer Line-Out
Speaker I/O
3x Screw Terminal Pairs
Wi-Fi
No
Bluetooth
No
Amplifier
Amplifier Type
Power Amplifier
Channels
2.1
Amplifier Class
BASH (Class-AB/Class-D Hybrid)
Power Output per Channel
2-Channel Driven:
120 W at 8 Ohms
150 W at 4 Ohms
Frequency Response
20 Hz to 20 kHz +0/-0.25 dB
5 Hz to 50 kHz +0/-3 dB
THD
1% (Full Power)
Speaker Impedance
2 to 8 Ohms
Tone Control
No
Audio Processing
Auro 3D Support
No
Supported Sample Rates
No
Connectivity
Rear A/V Inputs
1x Stereo RCA Line
Rear A/V Outputs
1x Stereo RCA Zone 2 Line-Out
1x RCA Zone 2 Line-Out
1x RCA Subwoofer Line-Out
Front I/O
No
Other Rear I/O
1x 1/8″ / 3.5 mm (12 V Trigger) Input
1x 1/8″ / 3.5 mm (12 V Trigger) Output
Speaker I/O
3x Screw Terminal Pairs
Media Card Slot
No
A/B Speaker Selection
No
Bi-Amp Capability
No
Signal to Noise Ratio
112 dB (IHF-A / Input Shorted)
Crosstalk
70 dB (20 kHz)
Wireless Connectivity
Wi-Fi
No
Bluetooth
No
Control
External Control Support
No
Mobile App Compatible
No
Power
Input Power
100 to 250 VAC, 50 / 60 Hz
Power Consumption
Maximum: 300 W
No Sound: 15 W
Standby: 0.5 W
Physical
Dimensions (W x H x D)
8.7 x 2.0 x 10.0″ / 220.0 x 51.0 x 254.0 mm (with Feet)
8.7 x 1.8 x 10.0″ / 220.0 x 45.0 x 254.0 mm (without Feet)
Weight
4.4 lb / 2 kg
