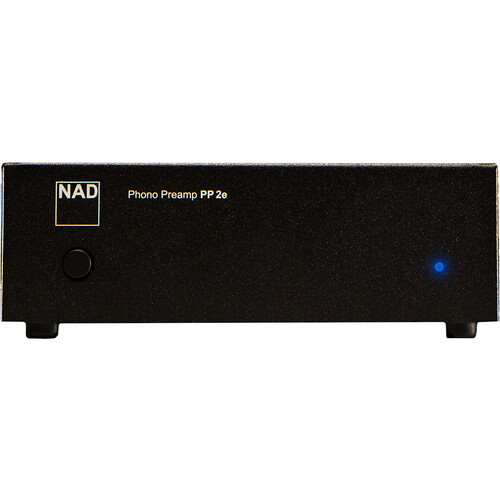

NAD Electronics PP 2e Phono Preamplifier for MM and MC Cartridges
NAD Electronics PP 2e Phono Preamplifier for MM and MC Cartridges - Image 2

NAD Electronics PP 2e Phono Preamplifier for MM and MC Cartridges

Add to wishlist
Compare

$195.00

Estimated delivery on 3 August - 14 September, 2025
Compare

Items Included

  • NAD Electronics PP 2e Phono Preamplifier for MM and MC Cartridges
  • Power Adapter
  • Limited 2-Year Manufacturer Warranty



Key Features
  • For Moving Magnet and Moving Coil Carts
  • Connect Your Turntable to Any Receiver
  • Gold-Plated Input Sockets
  • High-Quality Components Used Throughout
  • LED Power Indicator
  • Auto Power Down Saves Electricity
  • Includes 24 VDC Power Adapter



Perfect for the budget conscious audiophile, the NAD PP 2e is a phono preamplifier that offers superb performance in a clean and simple package. The PP 2e offers support for either moving magnet (MM) and moving coil (MC) cartridges, allowing you to use your turntable with any amplifier or receiver.

The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

At a Glance
  • Low-noise, wide band MC/MM phono stage
  • Connect your turntable to most amplifiers and receivers
  • External 23.5 VDC power supply
  • Gold-plated input sockets
  • LED power indicator
  • High-quality components
Category:
General
Compatibility
Not Specified by Manufacturer
Input Impedance
MC: (R and C) 100 Ohms + 180 pF
MM: (R and C) 47 Kilohms + 200 pF
Gain
MC: 60 dB, 1 kHz
MM: 35 dB, 1 kHz
Input Sensitivity
MC: 0.3 mV (ref. 200 mV Output)
MM: 2.5 mV (ref. 200mV Output)
Signal-to-Noise Ratio
MC: 78 dB (A-Weighted, with Cartridge Connected)
MM: 80 dB (A-+Weighted, with Cartridge Connected)
Total Harmonic Distortion (THD)
MC: < 0.03%
MM: < 0.03%
Line Outputs
Impedance: 100 Ohms
Max Output Level: 5.3 V

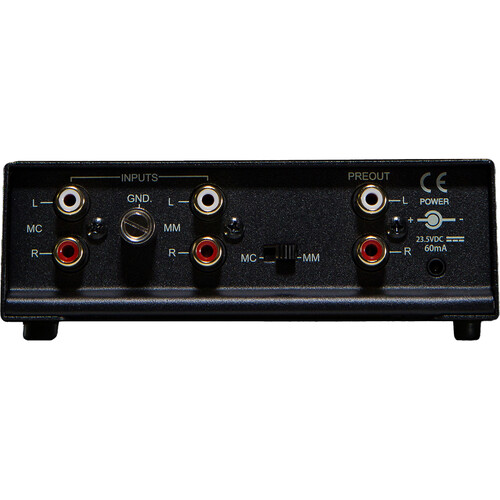

Inputs/Outputs
Audio I/O
2x 2RCA TS Line Input
1x 2RCA TS Line Output
Power
Power Source
AC Adapter with Power Brick (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
23.5 VDC at 60 mA
Physical
Color
Black
Dimensions
5.3 x 2.8 x 1.9″ / 135 x 72 x 49 mm
Packaging Info
Package Weight
1.775 lb
Box Dimensions (LxWxH)
8.3 x 7.8 x 3.1″
