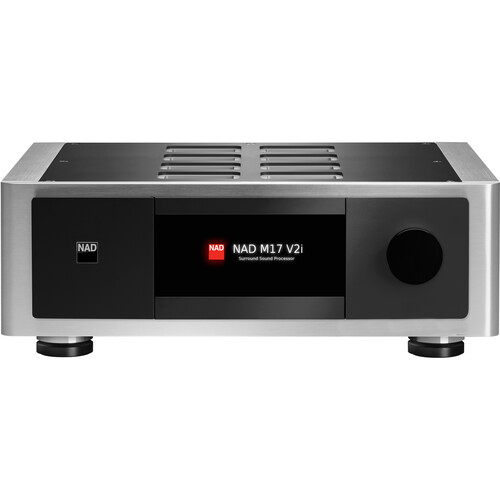

NAD Electronics M17 V2i 7.1.4-Channel Surround Sound Preamp Processor with MDC
NAD Electronics M17 V2i 7.1.4-Channel Surround Sound Preamp Processor with MDC - Image 2

NAD Electronics M17 V2i 7.1.4-Channel Surround Sound Preamp Processor with MDC

Add to wishlist
Compare

$6,999.00

Estimated delivery on 3 August - 14 September, 2025
Compare

Items Included

  • NAD Electronics M17 V2i 7.1.4-Channel Surround Sound Preamp Processor with MDC
  • Power Cord
  • BluOS Kit Containing USB Hub, Wi-Fi Dongle, Bluetooth USB Micro Adapter & USB Cable Extender
  • HTRM 2 Remote Control with 4 x AA Batteries
  • ZR7 Zone Remote with CR2025 Battery
  • 4 x 3-pin mini-XLR Female to 3-pin XLR Male Cable
  • Measurement Microphone with USB Mic Adapter & Phone Jack Adapter
  • 4 x Magnetic Feet
  • USB Flash Drive
  • Cleaning Cloth
  • Limited 3-Year Manufacturer Warranty
Key Features
  • 7.1.4-Channel Home Theater Preamp
  • 12 x XLR Balanced Outputs for 7.1.4
  • Differential DACs for Each Channel
  • Up to 192 kHz/24-Bit Audio Playback
  • 7.2-Channel RCA Output
  • 2 x HDMI Outputs, 1 w/ eARC & CEC
  • Modular Design Construction (MDC)
  • BluOS Streaming & MQA Support
  • Dirac Live Software & Microphone
  • IR, 12V Trigger, RS-232 & LAN Control

Build a future-proof surround sound system, starting with the NAD Electronics M17 V2i 7.1.4-Channel Surround Sound Preamp Processor with MDC. The M17 V2i features twelve fully balanced XLR outputs to connect up to 7.1.4 channels of audio, ready to be partnered with separate power amps, like the NAD M28.

The path to avoiding obsolescence comes by way of NAD’s MDC (Modular Design Construction), that allows for the swapping and upgrading of modules for audio, video, streaming, and whatever the future may hold. This model comes equipped with HDMI, Optical, digital coax, and stereo RCA inputs, along with BluOS streaming capability. The onboard DAC can play back hi-res audio up to 24-bit/192kHz, and supports processing for Dolby Atmos, DTS:X, and DTS-HD Master Audio. In addition to XLR balanced outputs, there are unbalanced RCA outputs for 7.2-channel audio as well as stereo RCA outs for zones 2, 3, and 4. Additionally, Dirac Live full frequency software and calibrated microphone are included to make sure you’re getting the best possible sound from your setup.

Modular Design Construction (MDC)
With MDC, all major digital circuits can be upgraded and replaced to keep the M17 V2i forever young and capable. This NAD innovation is a unique architecture that keeps pace with the fast-changing world of digital formats by allowing connectivity and feature upgrades as newer technologies become available. In fact, this M17 V2i is the previous M17 V2 chassis with new video and audio MDC modules installed. MDC defies premature obsolescence, so you can keep pace with the latest developments in high performance AV through dealer-installed modules. Your M17 V2i can be upgraded as your needs and tastes develop, and you only need to replace the module you want to upgrade, not the entire AV preamp processor.
Flexible Setup
The latest HDMI features, including HDCP 2.2, 4:4:4 color resolution, High Dynamic Range video support, and CEC/ARC, are all included. Digital audio inputs are available in both coaxial and optical formats to make it easy to attach all your digital sources. BluOS makes it easy to add more speakers for listening to music in additional rooms. IR repeaters, 12V triggers to automatically switch amplifiers on and off, and an RS-232 data port make it easy to connect to highly advanced automated control systems, such as Crestron and Control4.
BluOS Streaming
When connected to the Internet via Ethernet or Wi-Fi, the M17 V2i has access to thousands of Internet radio stations and over a dozen high-quality music services including Spotify, Amazon Music, Tidal, Deezer, and many more. With full support for Master Quality Authenticated (MQA) technology, the M17 V2i has high-resolution audio performance combined with high-definition video performance.
Additional Features
  • Separate linear and active power supplies dedicated for analog and digital sections
  • MDC Modular Design Construction includes AM 17 Audio and VM 300 Video modules
  • TFT touch display panel
  • Stores five custom A/V presets
  • Independent source and volume controls for Zone 2
  • Main zone and Zone 2 remotes included
Category:
Channels
7.1.4
DTS Compatibility
DTS, DTS-HD Master Audio
Dolby Compatibility
Dolby Atmos
Wi-Fi
Yes
Bluetooth
Yes
Amplifier
Amplifier Type
Preamplifier
Channels
7.1.4
Frequency Response
20 Hz to 20 kHz ±0.3 dB
THD
< 0.005% (20 Hz to 20 kHz)
Channel Separation
> 70 dB (1 kHz / 10 kHz)
Tone Control
Treble (10 kHz): ±10.0 dB
Bass (100 Hz): ±10.0 dB
Audio Processing
DTS Compatibility
DTS, DTS-HD Master Audio
Dolby Compatibility
Dolby Atmos
Auro 3D Support
No
Supported File Formats
AIFF, FLAC, WAV
DAC
192 kHz / 24-Bit
Video
HDR Support
Yes
Pass-Through Support
4K60p 4:4:4
Upscaling
No
GUI
Yes

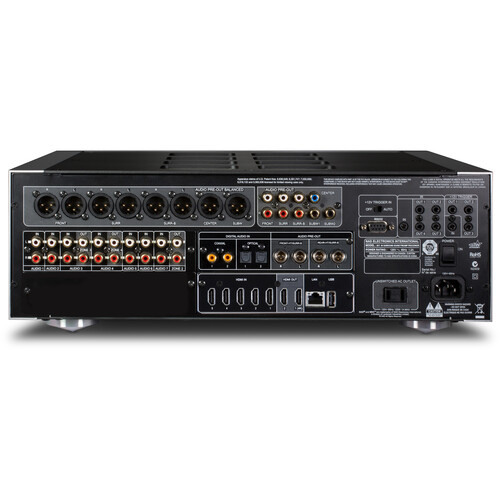

Connectivity
Rear A/V Inputs
5x HDMI
7x Stereo RCA
2x Digital Coaxial
2x Optical TOSLINK
1x USB-A
Rear A/V Outputs
2x HDMI
7x Mono XLR Pre-Out
4x Mini-XLR Pre-Out
1x Mono XLR Subwoofer Pre-Out
3x Stereo RCA Zone 2 / Zone 3 Line-Out
1x 7-Channel RCA Pre-Out
2x RCA Subwoofer Pre-Out
Front I/O
No
Other Rear I/O
1x RJ45 (Gigabit Ethernet) Input
1x DE-9 (RS-232C) Input
1x 1/8″ / 3.5 mm (IR) Input
4x 1/8″ / 3.5 mm (IR) Output
1x 1/8″ / 3.5 mm (12 V Trigger) Input
3x 1/8″ / 3.5 mm (12 V Trigger) Output
HDCP Support
Yes: Version 1.4/2.2
Audio Return Channel (ARC)
ARC, eARC
HDMI CEC
Yes
Media Card Slot
No
Input Impedance
56 Kilohms
Input Sensitivity
40 mV
Max Input Level
> 8 Vrms
Signal to Noise Ratio
> 90 dB
Total Harmonic Distortion (THD)
< 0.005% (20 Hz to 20 kHz)
Channel Separation
Line:
> 70 dB (1 kHz / 10 kHz)
Wireless Connectivity
Wi-Fi
Yes
Bluetooth
Yes
Control
External Control Support
Control4, Crestron Command, RTI, URC
Mobile App Compatible
Yes (Requires Included Adapter): Android & iOS
App Name: BluOS
Power
Input Power
120 VAC, 60 Hz
Power Consumption
Standby: 0.5 W
Physical
Dimensions (W x H x D)
17.1 x 6.1 x 15.2″ / 435.0 x 156.0 x 386.0 mm
Weight
24 lb / 10.9 kg
Packaging Info
Package Weight
40.48 lb
Box Dimensions (LxWxH)
22 x 20.8 x 11.6″
