Items Included
- NAD Electronics D 3020 V2 Hybrid Digital DAC Amplifier
- Power Cord
- Remote Control with Battery
- 3.5mm Male to Single RCA Female Adapter
- 4 x Dome-Shaped Feet
- Limited 2-Year Manufacturer Warranty
Key Features
- 2-Channel Amplifier Configuration
- 30W per Channel RMS into 4 or 8 Ohms
- Wireless aptX Bluetooth Input
- 24-Bit/192kHz DAC with MQA & DSD Support
- Digital Coaxial & Optical Inputs
- Stereo RCA Line & MM Phono Inputs
- 3.5mm Preamp & Subwoofer Outputs
- Separate Headphone Amplifier
- IR Remote Control Included
- 12V Trigger Input

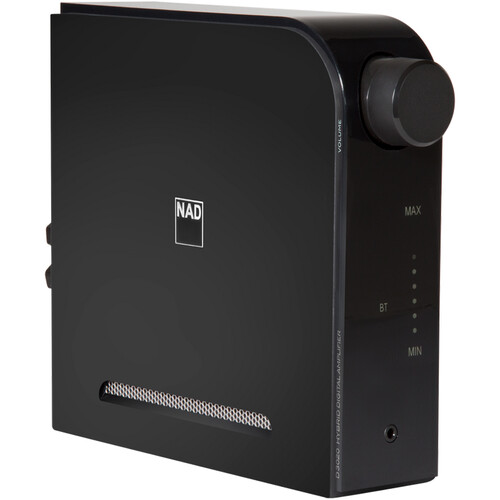

Redefining a classic for the modern era, the NAD Electronics D 3020 V2 Hybrid Digital DAC Amplifier is a compact and efficient amplifier that sounds bigger than its size and specifications would imply. Digital and analog inputs, including MM phono and wireless Bluetooth, accommodate an array of audio sources for playback. The D 3020 V2 is perfect for areas where space may be limited, like offices and bedrooms, just connect your favorite speakers and enjoy.
Reinventing an Icon
The original 3020 was well known for delivering power and quality that rivaled more expensive amplifiers and for playing well with a wide variety of loudspeakers, including low impedance models. The D 3020 V2 starts with the original NAD 3020 concept and modernizes it with the latest high-speed digital technology. The original designer of the 3020, NAD’s Director of Advanced Technology, Bjorn Erik Edvardsen, has been pivotal in developing the D 3020 for the new digital generation.
Power that Delivers
Power output may look small on paper at 30W per channel, but like all NAD amplifiers this is very misleading, as a properly designed 30W amplifier can sound superior to a 100W amplifier from a lesser brand. With its very small form factor, the D 3020 will astound many for its ability to drive difficult loudspeakers to satisfying levels without adding noise or distortion.
Well Connected

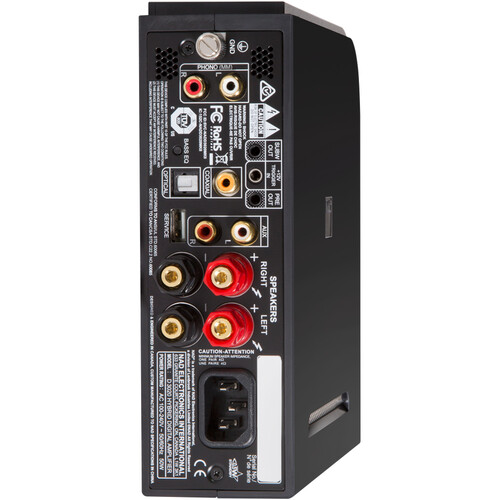

The D3020 V2 features Optical and digital coaxial inputs with a 24-bit/192 kHz DAC for digital sources, including computers, CD/DVD players, and televisions. A stereo RCA input is included for line level analog devices, along with an RCA MM phono stage input with highly accurate RIAA equalization for a turntable. Additionally, Bluetooth aptX wireless connectivity is built in for convenient streaming.
Additional Features
- Bass boost EQ
- TV Connect learns TV remote commands (must be connected via Optical)
- Full-range 3.5mm preamp output
- 3.5mm subwoofer output (mono 3.5mm male to RCA female adapter included)
- Separate headphone amplifier
- 12V trigger input
