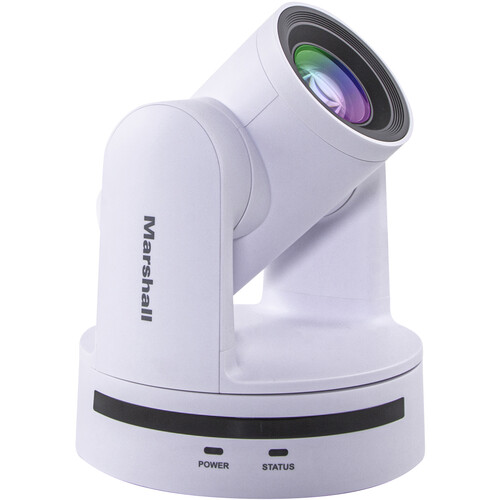

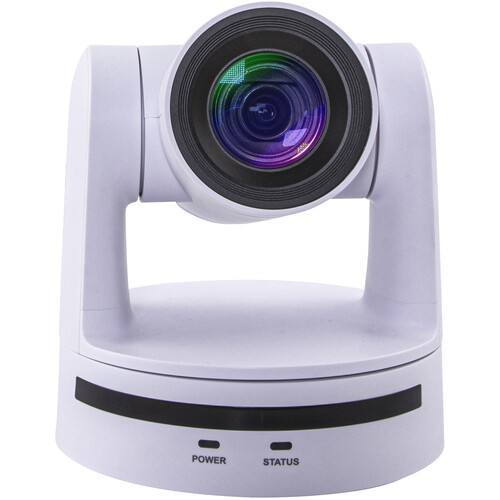

Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera
Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera - Image 2
Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera - Image 3

Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera

Add to wishlist
Compare

$496.10

Estimated delivery on 31 August - 12 October, 2025
Compare

Items Included

  • Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera (White)
  • IR Remote Control
  • Power Adapter
  • USB Type-C Cable
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 1/2.8″ 2.07MP HD CMOS Sensor
  • 5x Optical Zoom, 10x Digital Zoom
  • Up to 1920 x 1080p60 Video Output
  • USB 3.1 Type-C, HDMI, LAN Output
  • 255 Preset Positions, 10 by IR Remote
  • ±135° Pan, ±30° Tilt Ranges
  • IP/IR Remote/RS-232 Control
  • Zoom Conference Software Certified

Add a remotely controlled HD camera to your conferencing setup with the white CV605-U3 Compact PTZ USB/HDMI Camera from Marshall Electronics. The CV605-U3 is designed for use in various environments such as corporate and government meeting rooms, education, houses of worship, live events, courtrooms, healthcare, and broadcast media. It is easy to set up and can also be used as a webcam with a computer, compatible with a variety of conferencing services and has been certified for use with Zoom.

The CV605-U3 features a wide-angle 5x optical zoom lens with 10x digital zoom, and it incorporates a 1/2.8″ 2.07MP CMOS sensor for clear HD output with superior low-light performance and video output up to 1080p60. The camera utilizes a high speed, quiet motor with a ±135° pan range and a ±30° tilt range. Using IP or RS-232 control, you can program up to 255 preset positions which can also incorporate preset exposure, white balance, and picture style, and you can program up to 10 presets using the included IR remote.

The camera outputs video and embedded audio to USB Type-C, HDMI, and RJ45, and the Ethernet output supports RTSP/RTMP streaming, control, and PoE (Power-over-Ethernet) so you can connect to the camera with only a single cable. You can also input audio for embedding using the 3.5mm analog audio input.

Key Features
  • 5x optical zoom, 10x digital zoom
  • USB Type-C, HDMI, and IP outputs
  • Professional grade 2.07MP 1/2.8″ CMOS sensor to capture crisp HD video
  • Wide-angle up to 85°
  • Up to 1920 x 1080p60 resolution
  • 3.5mm analog audio input for embedding
  • H.265/H.264 RTSP/RTMP streaming
  • PoE (Power-over-Ethernet)
Ultra-Wide 85° Horizontal Angle of View
The wide-angle optical zoom lens offers an impressive 85° horizontal angle-of-view (wide open) with minimal distortion. The 5x optical zoom ranges from 3 to 15mm focal length (F1.8 to 2.8 aperture) and it features an additional 10x digital zoom.
Flexible USB Type-C + HDMI + IP options
The CV605-U3 offers a USB Type-C connection for video conferencing, collaboration, and streaming via a computer connection. HDMI opens a wide range of options with HDMI workflows, and IP provides an easy one-cable to camera setup and operation.
Zoom Certified
The CV605-U3 PTZ camera is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video conference.
Low-Light Sensitivity
The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast, and other applications with challenging light sources.
One Cable to Camera
One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.
Privacy Standby Mode
The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the Internet is paramount to protect intellectual properties and proprietary information while not in video meetings.
Category:
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Shutter Speed
1/10000 to 1/25 Second
Max Optical Zoom
5x
Max Digital Zoom
10x
Video Output
HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 50/59.94 fps
RJ45
1920 x 1080p
1600 x 896
1024 x 768
1280 x 720
800 x 600
1024 x 576
720 x 576
960 x 540
720 x 480p
640 x 480p
800 x 448
640 x 360
480 x 270p
320 x 180p
USB
1920 x 1080p
1280 x 720
800 x 600
1024 x 576
640 x 480p
800 x 448
640 x 360
480 x 270p
320 x 180p
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via RTSP/RTMP
640 x 480 to 1920 x 1080 at 29.97p, 25p, 59.94p, 50p (Simultaneous Multi-Stream)
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
PoE Support
PoE 802.3af
Mounting
1x 1/4″-20 Female
Imaging
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Range: 2400 to 7100K
Presets: One Push, Manual, Auto
Lens
Focal Length
3.1 to 15.5mm
Max Optical Zoom
5x
Max Digital Zoom
10x
Field of View
84 to 20°
Maximum Aperture
f/1.8 to 11
Video Capture
Video Output
HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 50/59.94 fps
RJ45
1920 x 1080p
1600 x 896
1024 x 768
1280 x 720
800 x 600
1024 x 576
720 x 576
960 x 540
720 x 480p
640 x 480p
800 x 448
640 x 360
480 x 270p
320 x 180p
USB
1920 x 1080p
1280 x 720
800 x 600
1024 x 576
640 x 480p
800 x 448
640 x 360
480 x 270p
320 x 180p
Audio Recording
AAC Audio
MP3 Audio
G.711A Audio
Broadcast Output
NTSC
IP Streaming
H.264/H.265 via RTSP/RTMP
640 x 480 to 1920 x 1080 at 29.97p, 25p, 59.94p, 50p (Simultaneous Multi-Stream)
Control
Presets
255 via IP, RS-232, VISCA
10 via IR
Pan/Tilt
Pan: 270° (-135 to 135°) at 0.1 to 60°/s
Tilt: 60° (-30 to 30°) at 0.1 to 30°/s
Tally Light
No
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
Interface
Video I/O
1 x HDMI 1.0 Output
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input
Other I/O
1 x RJ45 (RS-232) Input
1 x RJ45 (LAN) Control Input (Shared with Video Output)
1 x USB-C (USB 3.2 / 3.1 Gen 1) Video Input
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE 802.3af
Power I/O
1 x Barrel (12VDC at 1 A) Input
Power Consumption
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
Impact Resistance
No
Environmental Resistance
No
General
Mounting
1x 1/4″-20 Female
Dimensions (W x H x D)
5.7 x 6.1 x 5.8″ / 145.5 x 154 x 147 mm
Weight
2.84 lb / 1.29 kg (Body Only)
Packaging Info
Package Weight
6.35 lb
Box Dimensions (LxWxH)
10.5 x 9.8 x 9.2″
