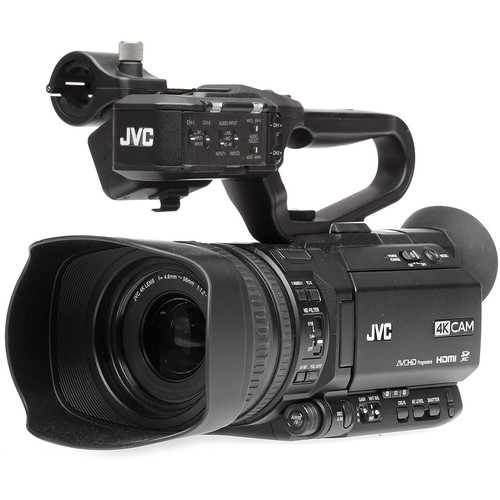

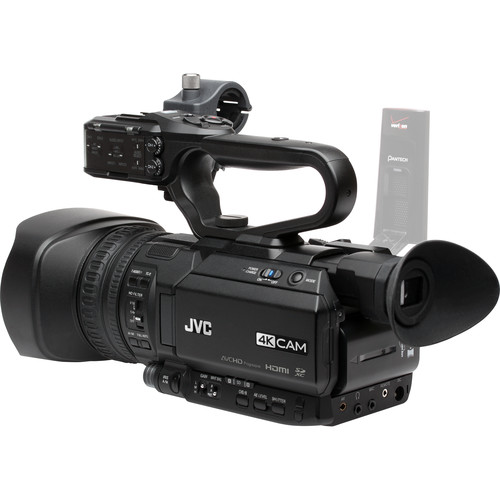

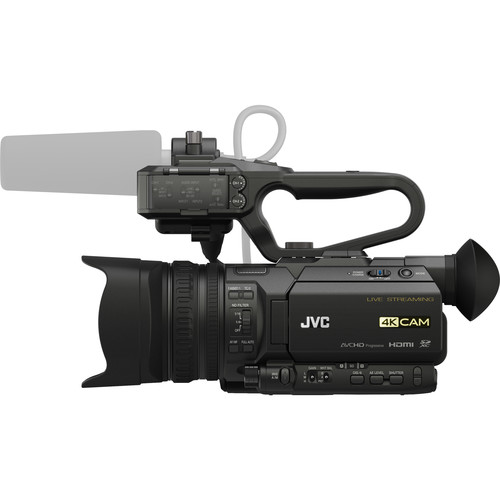

JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics
Handle Unit
AC Adapter
Lens Hood
Limited 1-Year Manufacturer Warranty
Key Features
1/2.3″ CMOS Sensor, 12x Optical Zoom
Records UHD 4K 24/30p at 70/150 Mb/s
IP Control & Full HD Live Streaming
4:2:2 4K Video at 24/30p
Lower-Thirds & Titling System in HD
Zeroconf, 1-Button LAN Configuration
Facebook Live Integration
3G-SDI & HDMI Out, Live HDMI UHD 4K Out

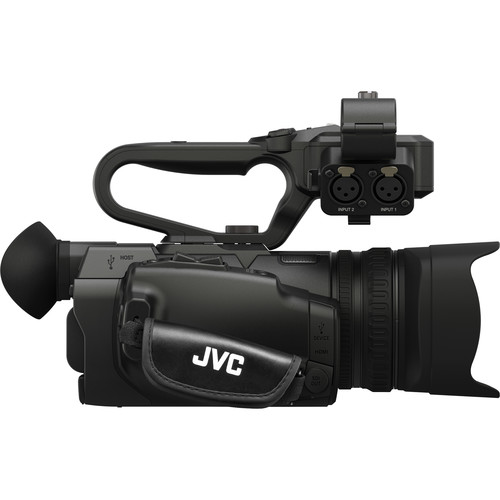

2-Channel XLR Audio Inputs
The JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics is a full-featured pro camcorder that enables a single operator to add lower-thirds and titles while recording in HD or streaming—no external character generator or switcher is required. It features a 1/2.3″ sensor and captures UHD 4K video at 24/30p, and 4:2:2 4K at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards or up to 70 Mb/s to SDXC/SDHC Class 10 cards.
The GY-HM250’s integrated IP engine enables you to stream Full HD in the field directly from the camcorder and offers remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250 offers one-click zeroconf configuration when using a common LAN between cameras. A firmware update brings Facebook Live integration to the camera, streamlining the connection process. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250 also comes with pre-installed color schemes and the ability to upload icons or logos to add a personalized look to your footage.
An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5″ LCD, a 0.24″ viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250 camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs. A top handle unit with the integrated audio box, a 7.4 VDC battery, and an AC adapter are included with the camera.
Note: Streaming requires a connection and the use of a wireless LAN, Ethernet, or cellular network to USB Type-A, USB 2.0 adapter.
Facebook Live integration simplifies and streamlines by adding it as a menu choice. This is available via a firmware upgrade, which is included with the camera and can be downloaded for free.
UHD 4K Recording with 150 and 70 Mb/s Options
Record UHD 4K at rates up to 70 Mb/s onto lower-cost Class 10 SDHC/SDXC cards, or at 150 Mb/s using SDXC UHS-I
Class 3 cards
Add Graphic Overlays in HD or While Streaming
Display custom lower-thirds and titles while recording in HD, or streaming—no external character generator or switcher required
Built-In Streaming Technology
An integrated streaming engine enables the camcorder to live stream Full HD video using RTMP, Zixi, and Wowza
Note: Requires an appropriate network connection and adapter (USB Type-A, USB 2.0 port)
Live 4K 3G-SDI and HDMI Output
Connect a UHD 4K monitor using either the 3G-SDI or HDMI output and view the camera’s live 4K signal
4:2:2 4K and Full HD Recording Options
Record broadcast-quality signals in 4:2:2 4K at 24 or 30p, or capture Full HD at 24 to 60p at rates up to 50 Mb/s
Additional Features
12x optical zoom with 24x dynamic zoom in Full HD
3.5″ LCD display, and 2.4″ color EVF
Dual SDXC/SDHC card slots
Two internal ND filter settings
2-channel XLR audio inputs with phantom power
Integrated stereo microphone
A histogram display aids in calculating your exposure
H.264
3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps [35 to 50 Mb/s]
1920 x 1080p at 50/59.94 fps [12 to 28 Mb/s]
1920 x 1080i at 50/59.94 fps [24 to 50 Mb/s]
1440 x 1080i at 50/59.94 fps [5 to 9 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
720 x 576i at 50 fps [8 Mb/s]
960 x 540 at 23.98/25/29.97 fps [3 Mb/s]
720 x 480i at 50/59.94 fps [8 Mb/s]
480 x 270 at 23.98/25/29.97 fps
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]
Video I/O
1 x BNC (3G-SDI) Output
1 x HDMI (Unspecified Signal) Output
1 x 1/8″ / 3.5 mm TRRS A/V (Composite) Output
Battery Type
JVC BN-VF823
Imaging
Image Sensor
1/2.33″-Type CMOS
Sensor Resolution
Effective: 12.4 Megapixel
Image Stabilization
Optical in Integrated Lens
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16) ND Filters
Capture Type
Video Only
Exposure Control
Shutter Type
Electronic Rolling Shutter
ISO/Gain Sensitivity
Gain: 0 to 24 dB (30 to 36 dB Extended)
White Balance
Range: 2300 to 15,000K
Lens
Focal Length
4.6 to 56mm (35mm Equivalent: 29.6 to 355mm)
Maximum Aperture
f/1.2 to 3.5
Minimum Focus Distance
Not Specified by Manufacturer
Filter Size
62 mm
Control Rings
Focus
Zoom
Focus
Focus Modes
Automatic, Manual Focus
Video Capture
Internal Recording
H.264
3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps [35 to 50 Mb/s]
1920 x 1080p at 50/59.94 fps [12 to 28 Mb/s]
1920 x 1080i at 50/59.94 fps [24 to 50 Mb/s]
1440 x 1080i at 50/59.94 fps [5 to 9 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
720 x 576i at 50 fps [8 Mb/s]
960 x 540 at 23.98/25/29.97 fps [3 Mb/s]
720 x 480i at 50/59.94 fps [8 Mb/s]
480 x 270 at 23.98/25/29.97 fps
Fast-/Slow-Motion Support
No
Built-In Microphone
Stereo
IP Streaming
H.264, H.265, MPEG2, RTMP, RTP, RTSP, ZIXI
1920 x 1080 at 50i, 59.94i (3.0 to 12.00 Mb/s)
1280 x 720 at 25p, 29.97p, 50p, 59.94p (1.5 to 12.00 Mb/s)
720 x 576 at 50i (0.3 to 8.0 Mb/s)
720 x 480 at 59.94i (0.3 to 8.0 Mb/s)
640 x 360 at 25p, 29.97p, 50p, 59.94p
Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]
Video I/O
1 x BNC (3G-SDI) Output
1 x HDMI (Unspecified Signal) Output
1 x 1/8″ / 3.5 mm TRRS A/V (Composite) Output
Audio I/O
2 x XLR 3-Pin Input (+48 V Phantom Power)
1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Output
1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input (Plug-in Power)
Power I/O
1 x Barrel (12VDC) Input
Other I/O
1 x USB-A (USB 2.0) Data Output
1 x Mini-USB (USB 2.0) Output
1 x 2.5 mm Sub-Mini Control Input
