JBL MA9100HP 9.2-Channel A/V Receiver & 5.1.4 Atmos Surround Sound Speakers Kit


$3,359.99

Estimated delivery on 13 July - 24 August, 2025
Compare

Items Included

    • 8 x Anti-Slip Pad
    • 2 x Speaker Grille
    • Limited 5-Year Manufacturer Warranty
    • Plinth
    • 4 x Mounting Screw
    • 4 x Floor Spike
    • Tool
    • Speaker Grille
    • Limited 5-Year Manufacturer Warranty
    • 4 x Floor Spike
    • Speaker Grille
    • Power Cord
    • Limited 1-Year Manufacturer Warranty
    • Remote Control with Batteries
    • Bluetooth Antenna
    • 2 x Wi-Fi Antenna
    • Power Cord
    • Limited 1-Year Manufacturer Warranty
    • 6 x Anti-Slip Pad
    • Speaker Grille
    • Limited 5-Year Manufacturer Warranty
    • 2 x Anti-Slip Pad
    • 2 x Speaker Grille
    • Limited 5-Year Manufacturer Warranty
Key Features
  • Up to 140W per Channel at 8 Ohms
  • 1 x Stage 245C Center Speaker
  • 2 x Stage 280F Floorstanding Speakers
  • 2 x Stage 250B Bookshelf Speakers
  • 4 x Stage 240H Height Speakers
  • 1 x Stage 220P 12″ Subwoofer
  • 8K 60 Hz HDR10/Dolby Vision Resolution
  • 6 x HDMI Inputs / 1 x HDMI eARC Output
  • Dual-Band Wi-Fi & Bluetooth 5.3 LE
  • EZ Set EQ Room Equalization

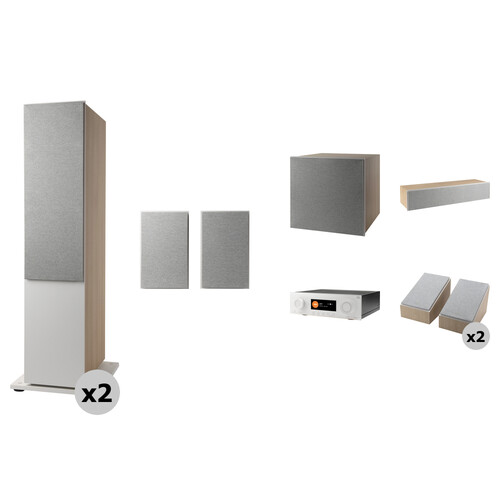

Experience full 5.1.4-channel Atmos enhanced surround sound with this Kit that includes the white JBL MA9100HP 9.2-Channel A/V Receiver, along with a pair of the Stage 280F Floorstanding Speakers for the front left and right, and a pair of the Stage 250B Bookshelf Speakers for the rear-surround channels. Also included are four Stage 240H Height Speakers that can be placed on top of the front and rear speakers for Atmos height effects. Rounding out the set is the Stage 245C Center Speaker, and a Stage 220P 12″ Subwoofer. This kit includes speakers in the light brown latte color with light gray grilles.

JBL Stage 250B 2-Way Bookshelf Speakers (Latte, Pair)

The JBL Stage 250B 2-Way Bookshelf Speakers in latte finish are the larger bookshelf option for the JBL Stage Series speakers and versatile enough to be used as main speakers or surrounds. The 250B is comprised of JBL’s 5.25″ Polycellulose ribbed cone woofer to handle the bass and midrange, with a 1″ anodized aluminum tweeter coupled to the Stage 2 HDI horn for the high frequencies.

The Stage 250B features sturdy 5-way binding posts to connect to your amplifier or receiver. The bass-reflex design utilizes a flared rear-firing port to reduce chuffing and improve bass response. Additionally, anti-slip pads are provided to secure the speaker and reduce vibration.

1″ Anodized Aluminum Tweeter in HDI Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity and reduces diffraction. In the Stage 250B speaker, the Stage 2 HDI Horn is coupled to a 1″ anodized aluminum dome tweeter. This design offers a neutral frequency response both on and off axis.
Additional Features
  • Floating front baffle design
  • Magnetically attached grille
JBL Stage 280F 2.5-Way Floorstanding Speaker (Latte, Single)

When beginning to build your home theater speaker system, look to the latte-colored Stage 280F 2.5-Way Floorstanding Speaker from JBL to be your main left or right speaker. The flagship of JBL’s Stage series, this tower speaker has dual 8″ crossed over woofers and a 1″ anodized aluminum tweeter for crisp highs, dynamic mid-range, and room-filling bass, for truly balanced sound. This sound is further enhanced with JBL’s HDI Waveguide that uses complex geometry for improved directivity, reduced diffraction, and an overall neutral frequency response. When you want to continue completing a home theater setup, Stage 280F supports the addition of JBL’s 240H Atmos module with top-rear-mounted 5-way binding posts for easy setup.

Additional Features
  • Woofers have polycellulose ribbed cones for improved rigidity
  • Stage 2 HDI horn is coupled with the 1″ tweeter for improved dynamics
  • Floating front baffle design
  • Magnetically attached grille
  • Floor spikes included for carpet placement

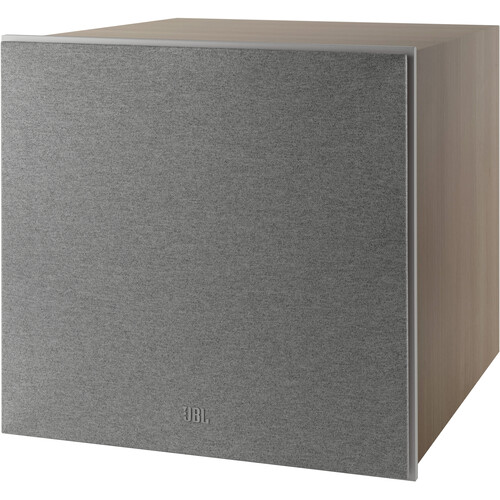

JBL Stage 220P 12″ 250W Subwoofer (Latte)

The latte Stage 220P 12″ 250W Subwoofer from JBL is the most powerful subwoofer in the Stage Series. Built with a ribbed high excursion 12″ polycellulose low-frequency woofer, it features dual rear-firing ports that provide deep and powerful bass, with 250W of RMS power and 500W of peak power. Also featured is a variable low-pass 50 to 150 Hz crossover, a line-level LFE input via RCA, magnetic grilles, and adjustable metal floor spikes for use on a thick rug or plush carpeting.

12″ Polycellulose Ribbed Cone Low Frequency Woofer
Each speaker in the Stage 2 series features polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
250W RMS Amplifier (500W Peak Power)
The built-in high-performance 500W amplifier provides impactful and memorable sound quality deserving of the JBL name. The 220P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.
Bass-Reflex Design with Dual Rear-Firing Flared Ports
The Bass-Reflex design of the 220P use dual rear-firing flared ports. This flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
Rear-Mounted Volume, Crossover, Phase, and Power Controls
The rear-mounted controls include a variable low-pass 50-150 Hz crossover, so it can be dialed precisely under the main channels and the power can remain on or set to Auto to save energy.
Line-Level LFE Input
The 220P profiles complete integration with an audio system via Line Level or LFE inputs. The LFE input bypasses the subwoofer’s internal low-pass crossover. It is used when you’re connecting the subwoofer to the dedicated subwoofer output of a receiver/processor that has its own low-pass crossover network.
Magnetically Attached Grilles
Stage 2 has premium details throughout the line, including magnetically attached grilles, unique trim rings, and the floating front baffle design, all of which are upscale features not typically found on loudspeakers in this price range.
Adjustable Floor Spikes
The floor spikes on the 220P provide stability when placing your speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each foot on the plinth of the speaker and are easily adjustable from the top.

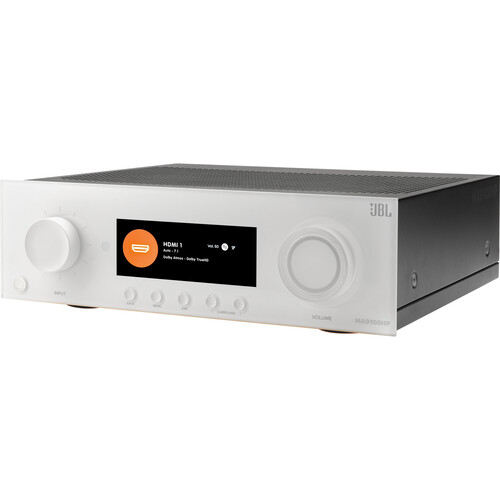

JBL MA9100HP 9.2-Channel Network A/V Receiver (White)
Create a movie theater atmosphere in your home with the MA9100HP 9.2-Channel Network A/V Receiver from JBL. Cinema fans looking to build a high-end home theater system will appreciate the white-colored MA9100HP’s ability to output at 8K60 and 4K120 resolutions as well as support 9.2-channel audio. With Dolby Atmos and DTS:X decoding, there’s even flexibility for connecting either 7.1.2 or 5.1.4 speaker configurations. Music lovers can stream from almost anywhere, thanks to Bluetooth aptX Adaptive for mobile devices and support for online services via dual-band Wi-Fi or Gigabit Ethernet connectivity. For the gamers in the family, specific technologies are available for achieving smooth frame rates. All of this content can be enjoyed in your theater or living room, or in a secondary location, thanks to Zone 2 audio out and a second HDMI output.
Dirac Live Ready
You have the option of using Dirac Live to optimize sound specifically for your room. The MA7100HP is Dirac Live Ready, which requires the purchase of a license to activate it.
Additional Features
  • HDR10+ and Dolby Vision
  • Apple AirPlay 2 and Google Chromecast support
  • VRR, ALLM, QFT, and HFR at 4K120 gaming features
  • 6 x HDMI inputs and 2 x HDMI outputs
  • eARC support for one HDMI output
  • Dual subwoofer outputs
  • Phono input for turntable connection
  • Low-noise Class-D amplification
  • EZ Set EQ room equalization for optimized sound quality
  • Supports IP control from third-party control systems

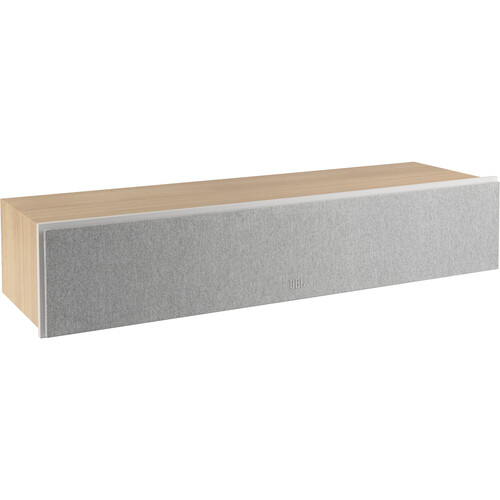

JBL Stage 245C 2.5-Way Center Channel Speaker (Latte)

The JBL Stage 245C 2.5-Way Center Channel Speaker in latte finish is voiced to blend seamlessly with any combination of JBL Stage 2 series speakers in a surround sound configuration. The 245C is comprised of JBL’s quad 4.5″ Polycellulose ribbed cone woofers to handle the bass and midrange, with a 1″ anodized aluminum tweeter coupled to the Stage 2 HDI horn for the high frequencies.

The Stage 245C features sturdy 5-way binding posts to connect to your amplifier or receiver. The bass-reflex design utilizes dual flared rear-firing ports to reduce chuffing and improve bass response. Center channel speakers are intended to be placed on a flat surface above or below your video display; anti-slip pads are provided to secure the speaker and reduce vibration.

2.5-Way Crossover
The unique two-and-a-half-way crossover blends the top woofer right below the tweeters output, while the bottom woofer is crossed over at a lower frequency. This helps create a more dynamic midrange without sacrificing low frequency presence.
1″ Anodized Aluminum Tweeter in HDI Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity and reduces diffraction. In the Stage 245C speaker, the Stage 2 HDI Horn is coupled to a 1″ anodized aluminum dome tweeter. This design offers a neutral frequency response both on and off axis.
Additional Features
  • Floating front baffle design
  • Magnetically attached grille
JBL Stage 240H 2-Way Dolby Atmos Surround Sound Speakers (Latte, Pair)

The JBL Stage 240H 2-Way Dolby Atmos Surround Sound Speakers in latte finish are the height-channel option for the JBL Stage Series speakers and are well suited for use as Dolby Atmos or rear surround speakers. The 240H is comprised of JBL’s 4.5″ Polycellulose ribbed cone woofer to handle the bass and midrange, with a 1″ anodized aluminum tweeter coupled to the Stage 2 HDI horn for the high frequencies.

The Stage 240H features sturdy 5-way binding posts to connect to your amplifier or receiver. For placement on speaker tops and other flat surfaces, anti-slip pads are provided to secure the speaker and reduce vibration. Alternatively, the 240H speakers include a key-hole slot and 1/4″-20 threaded insert for wall mounting.

1″ Anodized Aluminum Tweeter in HDI Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity and reduces diffraction. In the Stage 240H speaker, the Stage 2 HDI Horn is coupled to a 1″ anodized aluminum dome tweeter. This design offers a neutral frequency response both on and off axis.
Additional Features
  • Floating front baffle design
  • Magnetically attached grille
  • Toggle switch changes speaker from Atmos to surround sound mode
  • Partners perfectly as a speaker topper for the Stage 280F and 260F floorstanding speakers
Category:
Speaker Configuration
2-Way
Power Handling
75 W RMS
Drivers
1x 5.25″ / 133.35 mm Polycellulose Cone Mid-Woofer
1x 1″ / 25.4 mm Anodized Aluminum Tweeter
Frequency Response
50 Hz to 25 kHz (-6 dB)
55 Hz to 25 kHz (-3 dB)
Inputs/Outputs
1x 5-Way Binding Post Pair (Audio)
Speaker System
Speaker Configuration
2-Way
Power Handling
75 W RMS
Recommended Amplifier Power
20 to 150 W
Drivers
1x 5.25″ / 133.35 mm Polycellulose Cone Mid-Woofer
1x 1″ / 25.4 mm Anodized Aluminum Tweeter
Passive Radiators
No
Enclosure Type
Bass-Reflex
Ports
1x Rear-Firing
Frequency Response
50 Hz to 25 kHz (-6 dB)
55 Hz to 25 kHz (-3 dB)
Impedance
6 Ohms
Magnetic Shielding
No
Inputs/Outputs
1x 5-Way Binding Post Pair (Audio)
Crossover
1.7 kHz
Sensitivity
86 dB
Physical
Color
White / Latte Woodgrain
Placement & Mounting Options
Tabletop/Bookshelf
Floor Contacts
Rubber Feet
Grille
Cloth (Removable)
Dimensions
7.9 x 12.7 x 10″ / 200 x 323 x 253 mm (Each, with Feet, with Grille)
Weight
12.3 lb / 5.6 kg (Each)
Packaging Info
Package Weight
31.22 lb
Box Dimensions (LxWxH)
21.2 x 17.4 x 14″
