Items Included
- Fostex HP-A4 24-Bit USB DAC Headphone Amplifier
- 1m USB Cable
- 4 x Rubber Feet
- Limited 1-Year Manufacturer Warranty
Key Features
- Up to 24-Bit/192kHz PCM Support
- Up to 5.6MHz DSD Support
- USB 2.0 Input
- Optical S/PDIF Digital I/O
- Front-Panel 1/4″ Headphone Output
- 2 Gain-Staging Levels
- Selectable Filter
- Mac & Windows Compatible
- Includes USB Cable & Rubber Feet

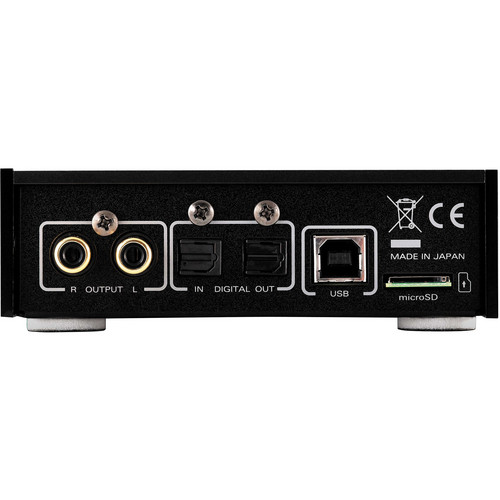

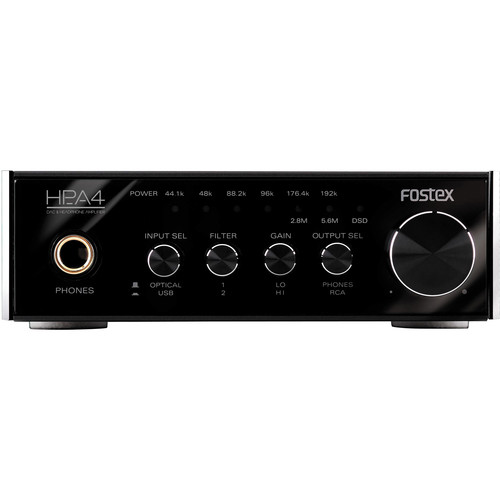

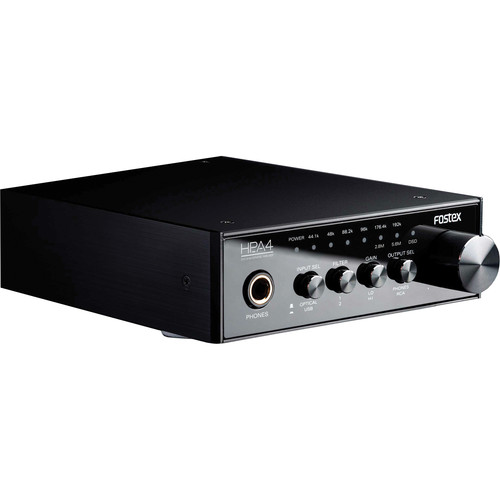

The HP-A4 24-Bit USB DAC Headphone Amplifier from Fostex supports PCM audio up to 24-bit/192kHz and DSD audio up to 5.6MHz. It features a front-panel 1/4″ stereo headphone output, rear-panel stereo RCA outputs, and optical S/PDIF I/O. The HP-A4 has 2 gain staging levels, allowing you to boost the output of the amp by 10dB without needing to touch the volume knob. The selectable filter allows you to cut-off lower frequencies if desired. A USB cable and 4 rubber feet are included.
USB bus powered
Linear PCM audio up to 24-bit/192 kHz and DSD audio up to 5.6 MHz playback
High-resolution playback in combination with “FOSTEX Audio Player” software
HI/LO Gain selection (10 dB)
Asynchronous transfer mode using custom-made crystal
Digital filter with selectable roll-off and cut-off characteristics
Complies with USB Audio Class 2.0 on Windows XP (SP2 or later), Vista, 7, 8 and Mac OS X 10.6 or later
microSD (SDHC) card drive on the rear panel for future firmware updates
| Digital Audio I/O |
Connectivity
| Digital Audio I/O | |
| Network I/O | |
| Sync I/O |
Performance
| Frequency Response | |
| Maximum Output Level | |
| THD |
Digital Audio
| Sample Rates | |
| Bit Depths |
Power
| Power Requirements | |
| Power Consumption |
Physical
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
