DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking

Add to wishlist
Compare

$979.30

Estimated delivery on 13 July - 24 August, 2025
Compare

Items Included

  • DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
  • Power Supply
  • RS-232 Control Cable
  • USB 2.0 Cable
  • IR Remote Control
  • Ceiling Bracket
  • Wall Bracket
  • Limited 1-Year Manufacturer Warranty (USA & Asia)
  • Limited 2-Year Manufacturer Warranty (EU & UK)
Key Features
  • Up to 1080p60, 1/2.8″ Sony CMOS Sensor
  • Dual-Stream Outputs via USB 3.0
  • HDMI, 3G-SDI, USB 3.0, RJ45 & Line-In
  • 20x Optical Zoom, Wide 56° Angle
  • AI Automatic Real-Time Tracking
  • Fast, Accurate & Stable Auto Focusing
  • RS-232, RS-485 In/Out, 255 Presets
  • ONVIF, RTSP, RTMP Protocols
  • VISCA, Pelco-D, Pelco-P Control
  • Low Noise, High Signal-to-Noise Ratio

The white C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking from DVDO supports up to 1080p60 video and dual-stream 30p output via USB. It features a wide 56° 20x optical zoom and AI human detection for real-time automatic tracking. Its interface includes HDMI, 3G-SDI, USB 3.0, and LAN ports with simultaneous outputs. A 3.5mm audio line input enables you to embed external audio. Control options include RS-232, RS-422, RS-485, VISCA, Pelco-D, and Pelco-P protocols.

1080p Resolution
A high-quality 1/2.8″ Sony CMOS sensor supports video resolutions up to 1080p with frame rate up to 60 fps.
Dual Stream Output
USB 3.0 supports the main-stream and sub-stream outputs simultaneously.
20x Optical Zoom
The integrated 20x optical zoom provides a 56° wide-angle view with 15x digital zoom available for tighter angles.
AI Human Detection
The built-in high-speed processor and AI technology provide advanced image processing, analysis algorithm, real-time tracking, and zone tracking modes.
Interface
Output is supported simultaneously via HDMI, SDI, USB 3.0, and LAN ports.
Auto-Focus Technology
Fast, accurate, and stable auto focusing technology ensures that your subject remains sharp.
Category:
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Shutter Speed
1/10000 to 1/25 Second
Optical Zoom Ratio
20x
Max Digital Zoom
15x
External Recording Modes
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264/YUY2/NV12/MJPEG/H.265 via RTSP/RTP/RTMPS/RTMP/ONVIF
320 x 240 to 1920 x 1080 at 5.00p, 30p, 25p, 20p, 15p, 10p (Simultaneous Multi-Stream)
Supported Control Protocols
IR
ONVIF Profile S
Pelco-D
Pelco-P
VISCA
PoE Support
PoE 802.3af
Mounting
1x 1/4″-20 Female for Bracket
Imaging
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Color Temperature, Manual, One Push
Lens
Focal Length
5.2 to 98mm
Optical Zoom Ratio
20x
Max Digital Zoom
15x
Field of View
Horizontal: 59 to 3.2°
Maximum Aperture
f/1.5 to 3
Video Capture
External Recording Modes
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio
HDMI/LAN (RJ45)/USB Output
Broadcast Output
NTSC/PAL
IP Streaming
H.264/YUY2/NV12/MJPEG/H.265 via RTSP/RTP/RTMPS/RTMP/ONVIF
320 x 240 to 1920 x 1080 at 5.00p, 30p, 25p, 20p, 15p, 10p (Simultaneous Multi-Stream)
Control
Presets
255 via RS-232, VISCA
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-30 to 90°) at 0.1 to 45°/s
Tally Light
No
Supported Control Protocols
IR
ONVIF Profile S
Pelco-D
Pelco-P
VISCA

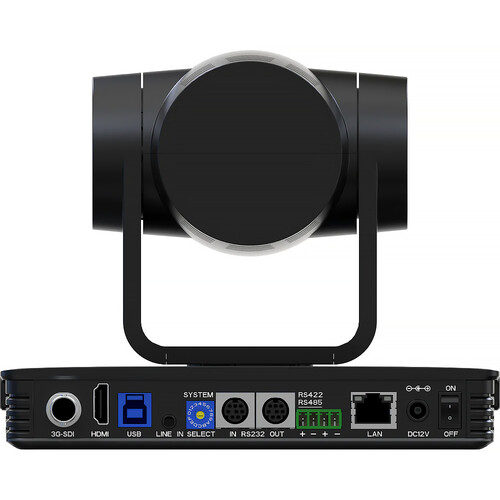

Interface
Video I/O
1x HDMI 1.3 Output
1x BNC (HD-SDI) Output
1x RJ45 LAN Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Line Input
Other I/O
1x Block 4-Pin (Pelco-D, Pelco-P, RS-232, RS-485) Control Input/Output
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Input
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Output
Built-In Speaker
No
Power
PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC at 2.5 A) Input
Power Consumption
12 W
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
Environmental Resistance
No
General
Mounting
1x 1/4″-20 Female for Bracket
Certifications
FCC Class A
Dimensions (W x H x D)
7.1 x 5.9 x 4.5″ / 181 x 149 x 115 mm
Weight
2.54 lb / 1.15 kg (Body Only)
