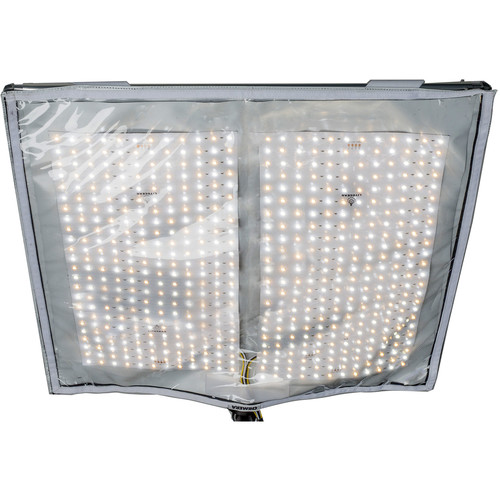

Chimera PL100 2x2' Head Unit LED Kit

Chimera PL100 2×2′ Head Unit LED Kit

Add to wishlist
Compare

$1,201.90

Estimated delivery on 24 August - 5 October, 2025
Compare

Items Included

  • Chimera PL100 2×2′ Head Unit LED Kit
  • PL100 Light Engine Controller
  • Multi-Voltage AC Power Supply with Pouch
  • 12′ Head Cable
  • Kit Bag
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Panel Surface Area: 19 x 19″
  • Color Balance: 2600-6000K
  • CRI: 95, TLCI: 95
  • 0-100% Dimming
  • Multi-Voltage AC Operation

The PL100 2×2′ Head Unit LED Kit from Chimera is a versatile soft light panel with multiple uses and mounting options. At the heart of the kit is the PL100 light engine by LiteGear. This LED light array comes with a controller that allows you to adjust the color temperature across its expanded 2600 to 6000K bi-color range, as well as adjust the light intensity from 0-100%, flicker-free. The included multi-voltage power supply allows you to use the light anywhere in the world. This flexible, lightweight panel has a touch-fastener border, it can be used anytime that soft and controllable light is required, and it has a variety of available mounting options. It features a removable gimbal mount and can be easily mounted to a standard Baby pin.

Compatible Chimera Modifiers
  • Panel Lantern Kit
  • Lantern Flat Diffusion for PL100
Category:
Item Type
1x LED Flexible Light
Included Storage Case
Yes
Photometrics
2600K:
130 fc / 1406 Lux at 3.3′ / 1 m*
351 fc / 3779 Lux at 2′ / 0.61 m
88 fc / 945 Lux at 5′ / 1.52 m
22 fc / 236 Lux at 8′ / 2.44 m
6000K:
170 fc / 1837 Lux at 3.3′ / 1 m*
459 fc / 4938 Lux at 2′ / 0.61 m
73 fc / 790 Lux at 5′ / 1.52 m
29 fc / 309 Lux at 8′ / 2.44 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2600 to 6000K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97 at 2600K
TLCI 96 at 2000K
CRI 95 at 6000K
TLCI 95 at 6000K
Dimming
Controller Included (Continuous)
 • 0 to 100%
Front Accessory Mount
Proprietary
Power Source
AC to DC Adapter (Included)
Input Power
12 VDC
100 to 240 VAC, 50 / 60 Hz
Power Consumption
100 W
Light Fixture
Item Type
1x LED Flexible Light
Included Storage Case
Yes
Lumens
5096
Photometrics
2600K:
130 fc / 1406 Lux at 3.3′ / 1 m*
351 fc / 3779 Lux at 2′ / 0.61 m
88 fc / 945 Lux at 5′ / 1.52 m
22 fc / 236 Lux at 8′ / 2.44 m
6000K:
170 fc / 1837 Lux at 3.3′ / 1 m*
459 fc / 4938 Lux at 2′ / 0.61 m
73 fc / 790 Lux at 5′ / 1.52 m
29 fc / 309 Lux at 8′ / 2.44 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2600 to 6000K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97 at 2600K
TLCI 96 at 2000K
CRI 95 at 6000K
TLCI 95 at 6000K
Dimming
Controller Included (Continuous)
 • 0 to 100%
Cooling System
Passive
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Power & I/O
Power Source
AC to DC Adapter (Included)
Input Power
12 VDC
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
100 W
General
Display
No
Environmental Resistance
No
Materials
Fabric
Dimensions
21 x 21 x 0.9″ / 53.34 x 53.34 x 2.29 cm (Fixture)
19 x 19″ / 48.26 x 48.26 cm (Fixture Panel)
Weight
3.5 lb / 1.59 kg
