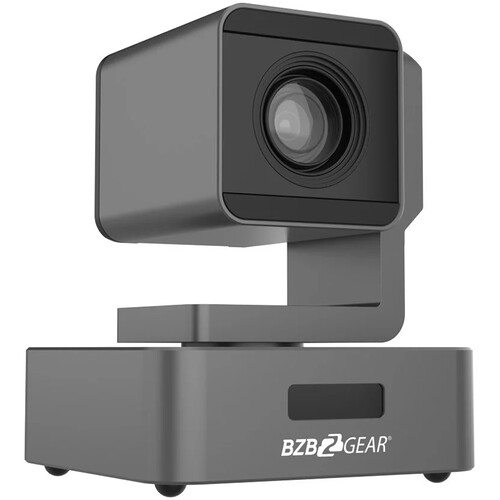

BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE
BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE - Image 2
BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE - Image 3
BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE - Image 4

BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE

(1 customer review)
Add to wishlist
Compare

$314.30

Estimated delivery on 17 August - 28 September, 2025
Compare

Items Included

  • BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE (Gray)
  • Power Adapter
  • IR Remote Control
  • RS-232 Adapter
Key Features
  • 1/2.7″ 2.7MP CMOS Sensor
  • HDMI, 3G-SDI, USB & IP Streaming Output
  • 10x Optical Zoom, 12x Digital Zoom
  • Capture up to 1080p Video, PoE Support
  • ±178° Pan Range
  • -30 to 90° Tilt Range
  • Embedded Audio & 3.5mm Stereo Analog In
  • RS-485/RS-232 VISCA/Pelco-P/D Control

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the gray 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE from BZB Gear. The camera features a 1/2.7″ CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, USB 2.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.

The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using VISCA-over-IP/ONVIF or by using its RS-232/RS-485 serial port with a separately available serial PTZ controller. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.

Equipped with a 10x optical zoom and a 12x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC or G711 audio with the video signal.

Key Features
Wide Applications
Remote learning, lectures, webcasting, video conferencing, remote training, remote medicine, interrogation, and emergency command systems
Control Protocols
Built-in VISCA, PELCO P/D, ONVIF with support for RS-485, RS-232, LAN (VISCA over IP), and IR remote control
Simultaneous Multi-Interface Video Output
3G-SDI, HDMI, and USB 3.0 (with cables 10′ or shorter) as well as LAN IP streaming using TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, or SNMP protocols
All-Aluminum High-Stability Chassis
Ultra-quiet pan/tilt design, horizontal ±178 degrees, vertical -30~+90° rotation, high-precision stepper motor drive with 0.01° accuracy
Audio Input
Built-in 3.5mm analog audio input interface and G.711, G.722, G.722.1, G.728, and G.722.1C AAC audio encoding (supports line-in audio function through IP stream only)
Advanced 2D/3D Noise Reduction Technology
Further reduce noise while ensuring image sharpness
Smart Menu and WebGUI Interface
Easy to enter Menu for preview and setting changes
10x Optical Zoom
Advanced video image processing & full HD 1/2.7″ CMOS sensor, maximum resolution up to 1080p60
Flexible Installation Options
Supports image mirror and flip function with ceiling, wall, tripod, and desk-mounting installations
Multiple Presets
The IR remote allows for 9 presets and serial or IP control
Category:
Image Sensor
1/2.7″-Type CMOS
Sensor Resolution
Effective: 2.7 Megapixel (1920 x 1080)
Shutter Speed
1/10000 to 1 Second
Optical Zoom Ratio
10x
Video Output
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264/H.265/MJPEG via ONVIF/RTMP/RTSP/TCP
1280 x 720 to 1920 x 1080
Supported Control Protocols
IP
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
PoE Support
PoE 802.3af
Mounting
3x M3 Female for Bracket/Ceiling
Imaging
Image Sensor
1/2.7″-Type CMOS
Sensor Resolution
Effective: 2.7 Megapixel (1920 x 1080)
IR Cut Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1 Second
Minimum Illumination
0.05 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Indoors, Manual, Outdoors
Range: 3000 to 6500K
Lens
Focal Length
5.1 to 51mm
Optical Zoom Ratio
10x
Field of View
Horizontal: 72 to 2.9°
Maximum Aperture
f/1.6 to 2.8
Video Capture
Video Output
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
Embedded Audio
HDMI/SDI: 2-Channel
Broadcast Output
NTSC
IP Streaming
H.264/H.265/MJPEG via ONVIF/RTMP/RTSP/TCP
1280 x 720 to 1920 x 1080
Control
Presets
255 via IP, RS-232, VISCA
9 via IR
Pan/Tilt
Pan: 356° (-178 to 178°) at 0.1 to 180°/s
Tilt: 120° (-30 to 90°) at 0.1 to 120°/s
Tally Light
No
Supported Control Protocols
IP
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
Interface
Video I/O
1 x HDMI (Unspecified Signal) Output
1 x BNC (3G-SDI) Output
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Line Input
Other I/O
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input
1x RJ45 (LAN) Control Input/Output
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC up to 2 A) Input
Power Consumption
Power Supply: 100 to 240 VAC 12 W
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C
Storage Conditions
14 to 140°F / -10 to 60°C
Impact Resistance
No
Environmental Resistance
No
General
Mounting
3x M3 Female for Bracket/Ceiling
OS Compatibility
Computer: Windows / macOS 11 or Later
Mobile: iOS Only
Dimensions (W x H x D)
4.7 x 5.7 x 4.7″ / 120 x 145 x 120 mm
Weight
3.5 lb / 1.6 kg (Body Only)
Packaging Info
Package Weight
4.135 lb
Box Dimensions (LxWxH)
10.1 x 9.2 x 8″
