Bolin Technology N2-210X NDI|HX3 PTZ 2-Camera & NDI Controller Kit (White)

Add to wishlist
Compare

$1,669.50

Estimated delivery on 13 July - 24 August, 2025
Compare
Key Features
  • Two N2-210X NDI|HX3 PTZ Cameras
  • NDI-Enabled IP PTZ Camera Controller
  • Output via USB-C, NDI|HX3, IP, or HDMI
  • IR Remote Control

Items Included

    • IR Remote Control
    • Power Adapter
    • RS-232/422 Serial Adapter Cable
    • Limited 2-Year Manufacturer Warranty
    • RS-422 RJ45 Adapter
    • Serial Control Junction Box
    • Power Supply (12V, 2A)
    • Limited 2-Year Manufacturer Warranty

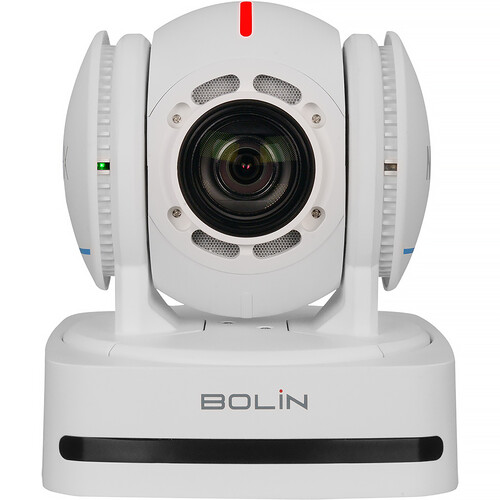

Capture professional HD video for your video conferencing, education, house of worship, or other video application with this white N2-210XW NDI|HX3 PTZ Camera from Bolin Technology. This remotely controllable PTZ camera features a webcam-style housing, and it allows you to capture up to 1080p60 resolution video and output via HDMI, USB-C 2.0, NDI|HX3, or IP streaming via its RJ45 Ethernet interface. Additional features include a 10x optical zoom, an additional 16x digital zoom, a 68.8° angle of view, a ±170° panning range, a +90 to -30° tilting range, auto or manual focus, a wide dynamic range, and serial/IP control. It also features a 3.5mm mic/line input and a durable aluminum housing.

The low-noise 1/2.8″ 2.13MP CMOS sensor ensures a high signal-to-noise ratio, while the advanced 2D/3D noise-reduction technology further reduces image noise, so a sharp image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live internet stream. You can also output the video via USB with UVC support, making it easy to interface with a computer to send video and audio to a streaming or recording application. There is also an audio line input on the back to input stereo audio into your streams and video output.

The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF and VISCA-over-IP control, or the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 255 preset positions using an optional serial controller, or store six presets when using the included IR remote. You can power the camera using a networked PoE (Power-over-Ethernet) switch or the included power adapter. The camera also includes an RS-232 control cable.

High-Quality Full HD Imaging
This Bolin NDI|HX3 N2 PTZ camera is equipped with a 1/2.8″ CMOS sensor to provide high-quality images in 1080p60 resolutions with 10x optical zoom. The camera comes in a white color.
NDI Streaming
The camera supports NDI|HX3 and are fully compatible with NDI-enabled hardware and software. It also supports RTSP and RTMP for online video and live streaming.
SRT Ready
The N2 can deliver high-quality, secure, low-latency video across the public internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best-quality live video over unstable networks.
Video Output
The N2 NDI|HX3 PTZ cameras deliver NDI IP streaming video to network and are fully compatible with NDI-enabled hardware and software, with local HDMI video and USB streaming to computer software for conventional video production and cloud based video conferencing applications.
Video Settings
Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, E-Flip/mirror, and more, with configurable video settings.
Smart Focus and Exposure
The camera is built with Bolin’s latest AI-powered face analytical engine, which enables precise smart focus and smart exposure to bring a greater level of user experience and effective image-quality improvement in a complex user environment.
Audio
All HDMI, USB, and IP video streaming signals have high-quality audio streaming embedded with support for mic-in / line-in audio inputs.
PTZ Movement
The N2-210XW features extremely quiet and smooth pan/tilt operation and enhanced adaptive, variable, and super-slow speed control for accurate and effective operation. With the Picture Profile Preset, image parameter settings are restored with presets and quick access.
Remote Control and Setup
The camera supports serial RS-232/RS-422 control and VISCA-over-IP control over a network. Remotely control pan, tilt, and zoom movements with full access to the camera’s image parameter settings via a keyboard controller or IR controller.
Ease of Installation and Use
Use optional Bolin mounting accessories and connect one network cable with a PoE+ enabled Ethernet network/PoE device, or use the included RJ45 port serial cable adapter to make installation and control easy. Connect one network cable from the camera to any Gigabit Ethernet network/PoE device to access an existing IP network, and connect an HDMI/SDI cable to baseband video workflow. Standard mounting and ceiling mounting are achieved with the E-Flip function.
Always up to Date
Free and easy firmware updates are available via the IP interface to keep camera features and performance up to date, even for customized function upgrades.
Bolin Technology NDI-Enabled IP PTZ Camera Controller
The Bolin Technology NDI-Enabled IP PTZ Camera Controller is an upgraded PTZ control interface with NDI technology designed to make PTZ functions easy to perform. Use the joystick, knobs, buttons, and rocker controls to facilitate movement for up to 14 cameras via VISCA protocol and up to 255 camera via ONVIF, VISCA-over-IP, and serial RS-232/485/422 communication. An integrated LED status display makes for easy monitoring of your movements. Power is delivered to the controller via PoE+ or using the 12 VDC power supply.
Quick Access Controls
Dedicated knobs for quick access features include control for exposure, shutter speed, iris, compensation, white balance, focus, PT speed, and zoom speed. Toggle between auto and manual control modes, utilize the illuminated buttons for camera selection, and the 3-axis joystick for precise camera movements.
Selectable ASSIGN Items
ASSIGN keys allow you to select additional functions and assign them for one-key quick actions. Potential actions include camera flicker, status display, AE level, SRZ, Tele Convert mode, trace memory, ND filter, Picture Profile settings, rain wiper on/off, camera power, etc.
Other PTZ Control Features
  • Supports Bolin image rolling adjustment control
  • Pan, tilt, zoom 3-way simultaneous joystick control
  • Seesaw lever zoom control
  • Instant variable speed adjustment for PTZ
  • Trace Memory allows sequence of camera moves to be stored and recalled whenever required
  • Instant camera focusing by manually fine tuning and One Push focus
Transfer Keyboard & Camera Configuration Data
Use IP software tools to modify and organize the controller’s configuration and export/import existing PTZ camera registration data via IP network to make setup a breeze, especially when you have multiple controllers in a single system.
Image Parameter Controls
Control image color and exposure related settings via VISCA protocols. Settings include black levels, white balance, auto/manual exposure level, iris, gain, and shutter speed, which can be adjusted directly without using the camera menus.
Direct IP PTZ Assignment
Automatically search available IP cameras in the network. Assign IP addresses and facilitate camera registration with ease. The PoE+ port provides power over serial control cable to keep the back-panel wired connections organized.
Store and Recall Camera Presets
Camera presets with position, zoom, and image parameter settings can be stored and recalled using the numeric keypad.
Wide Power Voltage Tolerance
With a voltage tolerance of 6 to 48V, the controller can support longer distance power runs, making it suitable for vehicles or mobile equipment carts.
Switch Video Router
The controller is compatible with the Blackmagic SDI video router for simultaneous PTZ control and camera/monitor switching.
Easily Upgradeable
Perform firmware upgrades via USB/IP to keep your controller up to date.
Mix Different Camera Brands
VISCA over IP port can be used with any brand of compatible cameras for a single shared system with no conflicts.
Category:
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.13 Megapixel (1920 x 1080)
Shutter Speed
1/10000 to 1 Second in Video Mode
Optical Zoom Ratio
10x
Max Digital Zoom
16x
External Recording Modes
USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 25/30.00/50/60.00 fps
8-Bit via HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 25/30.00/50/59.94/60.00 fps
Broadcast Output
NTSC
IP Streaming
H.264/MJPEG/H.265 via UDP/TCP/SRT/RTSP/RTP/RTMPS/RTMP/UVC/UAC
320 x 180 to 1920 x 1080 at 30p, 25p, 60p, 50p (Simultaneous Multi-Stream)
Supported Control Protocols
IP
IR
NDI
Pelco-D
Pelco-P
RS-232
RS-422
RS-485
VISCA
PoE Support
PoE+ 802.3at
Mounting
1x 1/4″-20 Female
Imaging
Image Sensor
1/2.8″-Type CMOS
Sensor Resolution
Effective: 2.13 Megapixel (1920 x 1080)
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1 Second in Video Mode
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip
White Balance
Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors
Lens
Focal Length
4.34 to 35.17mm
Optical Zoom Ratio
10x
Max Digital Zoom
16x
Field of View
Horizontal: 68.8 to 8.8°
Vertical: 39.5 to 5.1°
Maximum Aperture
f/1.85 to 2.63
Minimum Focus Distance
0.4″ / 1 cm
Video Capture
External Recording Modes
USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 25/30.00/50/60.00 fps
8-Bit via HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 25/30.00/50/59.94/60.00 fps
Embedded Audio
HDMI/LAN (RJ45)/NDI/USB
Broadcast Output
NTSC
IP Streaming
H.264/MJPEG/H.265 via UDP/TCP/SRT/RTSP/RTP/RTMPS/RTMP/UVC/UAC
320 x 180 to 1920 x 1080 at 30p, 25p, 60p, 50p (Simultaneous Multi-Stream)
Control
Presets
255 via IP, RS-232, UVC, VISCA, Pelco-P, Pelco-D
6 via IR
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.5 to 100°/s
Tilt: 120° (-30 to 90°) at 0.5 to 50°/s
Tally Light
Yes
Supported Control Protocols
IP
IR
NDI
Pelco-D
Pelco-P
RS-232
RS-422
RS-485
VISCA
Interface
Video I/O
1x USB-C 2.0 Output
1x RJ45 (NDI) Input/Output
1x HDMI 1.4 Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Line Input
Other I/O
1x RJ45 (RS-232, RS-485) Control Input
1x RJ45 (LAN, NDI) (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC) Input
Power Consumption
Device: 12 VDC at 4 A (10 to 13 W)
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C up to 80% Humidity
General
Mounting
1x 1/4″-20 Female
Material of Construction
Magnesium Alloy
Dimensions (W x H x D)
63.4 x 56.3 x 56.3″ / 161 x 143 x 143 cm
Weight
3.3 lb / 1.5 kg (Body Only)
Packaging Info
Package Weight
5.94 lb
Box Dimensions (LxWxH)
13.1 x 8.9 x 8.7″
