ASUS NUC 14 Pro Barebone Kit

(1 customer review)
Add to wishlist
Compare

$244.30

Estimated delivery on 13 July - 24 August, 2025
Compare
Key Features
  • 1.2 GHz Intel Core 3 100U 6-Core
  • 2 x 5600 MHz DDR5 SO-DIMM Slots
  • Integrated Intel Graphics
  • M.2 2280 PCIe 4.0 | M.2 2242 PCIe 3.0
  • 1 x 2.5″ Drive Bay
  • Wi-Fi 6E (802.11ax) | Bluetooth 5.3
  • Thunderbolt 4 | HDMI 2.1 | USB-C | USB-A
  • Connect up to Four Displays
  • Includes US Power Cord
  • Windows 11 OS Ready

Items Included

  • ASUS NUC 14 Pro Barebone Kit
  • Power Adapter
  • US Power Cable
  • Limited 3-Year Manufacturer Warranty

With its compact size, the ASUS NUC 14 Pro Barebone Kit can be placed almost anywhere and customized for a variety of uses, including digital signage, media streaming, and everyday productivity. Inside is a 1.2 GHz Intel Core 3 100U 6-Core processor with integrated graphics to get your started.

The two DDR5 SO-DIMM slots support up to 96GB of memory. For storage, you have an M.2 2280 PCIe 4.0 slot alongside an M.2 3.0 2242 slot and a 2.5″ drive bay. This system also includes built-in Wi-Fi 6E support and a 2.5G Ethernet port for high-speed internet access. Dual Thunderbolt 4 ports, along with a front-facing USB-C 3.2 Gen 2×2 and three USB-A 3.2 Gen 2 ports, allow you to quickly transfer large videos, photos, and other files. This kit is Windows 11 OS ready. A US power cable is included.

Performance
The Intel Core 3 100U mobile processor powers applications with two Performance cores while four Efficient cores handle background tasks. The Performance cores have a base speed of 1.2 GHz and can be boosted up to 4.7 GHz.
Expansion

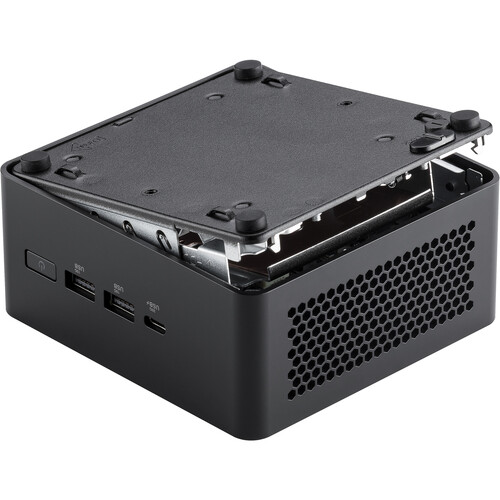

There are two dual-channel DDR5-5600 SO-DIMM slots available, supporting up to 96GB. There is also an M.2 2280 PCIe 4.0 x4 slot and an M.2 2242 PCIe 3.0 x4 slot alongside a 2.5″ drive bay.
High-Speed USB

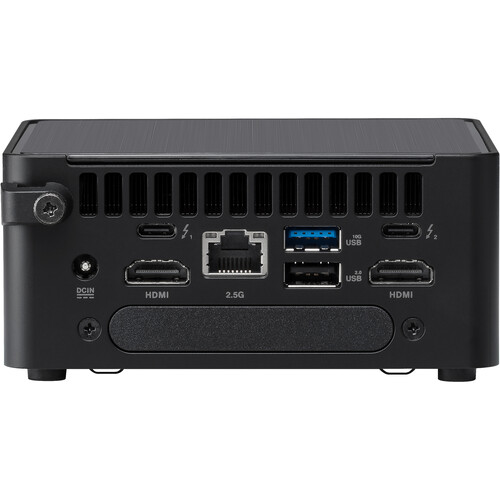

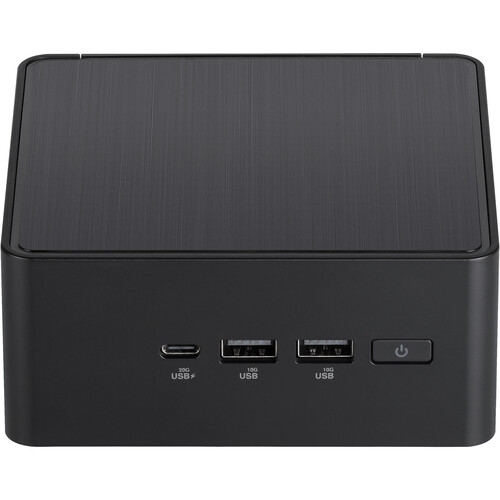

A front-facing USB-C 3.2 Gen 2×2 port allows you to transfer up to 20 Gb/s with compatible devices. The front panel also includes two 10 Gb/s USB-A 3.2 Gen 2 ports. The rear panel includes two Thunderbolt 4 ports, a USB-A 3.2 Gen 2 port, and one USB-A 2.0 port.
Thunderbolt 4
Thunderbolt 4 is a hardware interface that utilizes the reversible USB-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.
Network Connectivity
Wi-Fi 6E (802.11ax) support provides access to the less congested 6 GHz band with compatible wireless networks. The 2.5G Ethernet port provides a fast and reliable wired internet connection.
Multi-Display Support
Enhance your workflow by connecting up to three displays through the HDMI and Thunderbolt 4 ports.
Category:
Operating System
No
Processor
Intel Core 3 100U
GPU
Intel Graphics
Installed RAM
No
Total Installed Storage
No
Inputs/Outputs
2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery
1x USB-C 3.2 Gen 2×2
3x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
2x HDMI 2.1
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Performance
Processor
Intel Core 3 100U
CPU
6-Core:
1.2 to 4.7 GHz Performance (2 Cores)
0.9 to 3.3 GHz Efficiency (4 Cores)
L3 Cache
10 MB
Graphics Type
Integrated
GPU
Intel Graphics
Installed RAM
No
RAM Type
5600 MT/s DDR5 SO-DIMM
RAM Configuration / Capacity
RAM Needed / 2 Slots Supporting up to 96 GB
vPro Support
No
Storage and Expansion
Total Installed Storage
No
Storage Expansion
1x M.2 Slot 2280 (PCIe 4.0 x4) [Available]
1x M.2 Slot 2242 (PCIe 3.0 x4) [Available]
1x 2.5″ Bay (SATA III) [Available]
PCI Expansion
No
Inputs / Outputs
Inputs/Outputs
2x USB-C (Thunderbolt 4) / Supports Video Alt Mode and Power Delivery
1x USB-C 3.2 Gen 2×2
3x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
2x HDMI 2.1
Audio I/O
No
Network I/O
1x RJ45 (2.5Gb Ethernet)
Built-In Speakers
No
Built-In Microphones
No
Media/Memory Card Slot
No
Communications
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Keyboard & Mouse
Keyboard
No
Pointing Device
No
General
Security
Firmware TPM (Software-Based)
Power Supply
90 W with Barrel/Proprietary
VESA Mounting-Hole Pattern
No
Dimensions
4.61 x 4.41 x 2.13″ / 117.09 x 112.01 x 54.1 mm
Weight
1.36 lb / 0.62 kg
Packaging Info
Package Weight
3.28 lb
Box Dimensions (LxWxH)
8.5 x 6.7 x 4.8″
