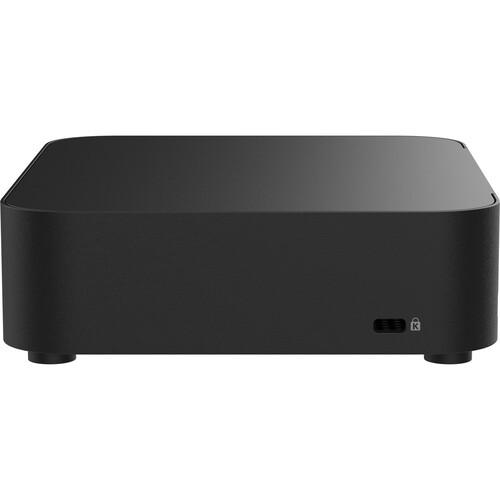

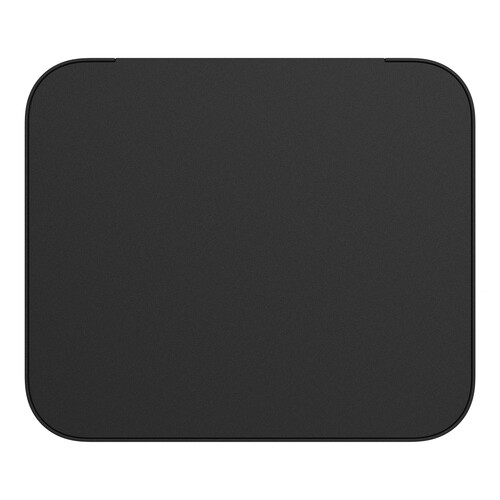

ASUS NUC 14 Essential Barebone Kit

Add to wishlist
Compare

$166.60

Estimated delivery on 13 July - 24 August, 2025
Compare

Items Included

  • ASUS NUC 14 Essential Barebone Kit
  • 65W Power Adapter
  • US Power Cable
  • VESA Mount
  • Limited 3-Year Manufacturer Warranty
Key Features
  • Intel N250 Quad-Core
  • 4800 MHz DDR5 SO-DIMM Slot
  • Integrated Intel Graphics
  • M.2 2280 PCIe 3.0 Slot
  • 2.5G Ethernet LAN Port
  • Wi-Fi 6E (802.11ax) | Bluetooth 5.3
  • USB 3.2 Gen 2 | USB 2.0
  • HDMI 2.1 | DisplayPort 1.4
  • Includes US Power Cord
  • OS Ready

Ideal for everyday productivity, the ASUS NUC 14 Essential Barebone Kit features a compact design that can fit into a variety of spaces. Additionally, its versatile connectivity allows you to adapt the system to a variety of applications, including digital signage. Inside is a power-efficient Intel N250 quad-core processor with integrated graphics to get you started.

Up to 16GB of 4800 MHz memory may be installed into the DDR5 SO-DIMM slot. For storage, the M.2 2280 PCIe 3.0 slot supports up to a 2TB SSD. This system also includes built-in Wi-Fi 6E support and a 2.5G Ethernet port for high-speed internet access. USB-C and USB-A 3.2 Gen 2 ports work with up to 10 Gb/s devices to quickly transfer large videos, photos, and other files. Install the OS of your choice. A US power cable is included.

Performance
Designed for high power efficiency, the Intel N250 quad-core processor can reach Max Turbo Boost frequency of 3.8 GHz.
Versatile Connectivity

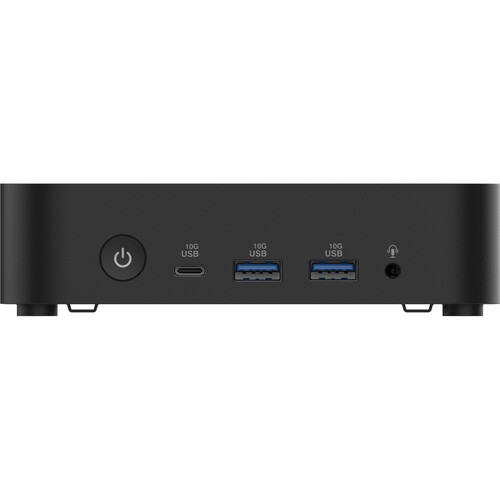

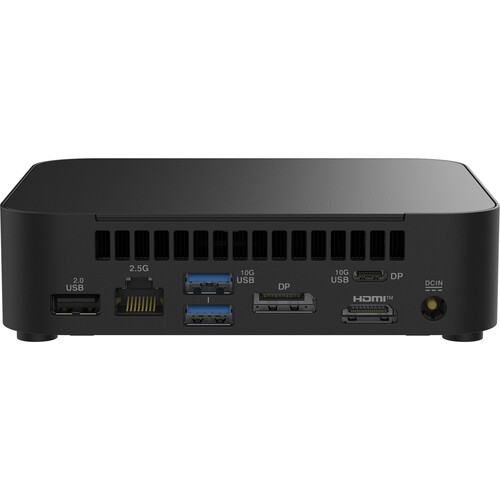

The front panel includes one USB-C and two USB-A 3.2 Gen 2 ports alongside a 3.5mm headset jack. A USB-C 3.2 Gen 2 port and two USB-A ports are also on the rear panel in addition to a USB-A 2.0 port.
Network Connectivity
Wi-Fi 6E (802.11ax) support provides access to the less congested 6 GHz band with compatible wireless networks. The 2.5G Ethernet port provides fast and reliable wired internet connections.
Multi-Display Support
Enhance your workflow by connecting three displays through the HDMI, DisplayPort, and rear USB-C ports.
Category:
Operating System
No
Processor
Intel N250
GPU
Intel Graphics
Installed RAM
No
Total Installed Storage
No
Inputs/Outputs
1x USB-C 3.1/3.2 Gen 2
1x USB-C 3.1/3.2 Gen 2 / Supports Video Alt Mode
4x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
1x HDMI 2.1
1x DisplayPort 1.4
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Performance
Processor
Intel N250
CPU
Quad-Core: Up to 3.8 GHz
Dedicated AI Cores
No
L3 Cache
6 MB
Graphics Type
Integrated
GPU
Intel Graphics
Installed RAM
No
RAM Type
4800 MT/s DDR5 SO-DIMM
RAM Configuration / Capacity
RAM Needed / 1 Slot Supporting up to 16 GB (SO-DIMM)
vPro Support
No
Storage and Expansion
Total Installed Storage
No
Storage Expansion
1x M.2 Slot 2280 (PCIe 3.0 x4) [Available]
PCI Expansion
No
Inputs / Outputs
Inputs/Outputs
1x USB-C 3.1/3.2 Gen 2
1x USB-C 3.1/3.2 Gen 2 / Supports Video Alt Mode
4x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
1x HDMI 2.1
1x DisplayPort 1.4
Audio I/O
1x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
Network I/O
1x RJ45 (2.5Gb Ethernet)
Built-In Speakers
No
Built-In Microphones
No
Media/Memory Card Slot
No
Communications
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Keyboard & Mouse
Keyboard
No
Pointing Device
No
General
Security
Firmware TPM (Software-Based), Kensington Lock Slot
Power Supply
65 W with Barrel/Proprietary
VESA Mounting-Hole Pattern
Yes (Unspecified VESA Pattern)
Dimensions
5.31 x 4.53 x 1.42″ / 13.49 x 11.51 x 3.61 cm
Weight
2.05 lb / 930 g
Packaging Info
Package Weight
2.545 lb
Box Dimensions (LxWxH)
9.4 x 6.7 x 4.1″
