ASUS NUC 13 Pro Barebone Kit

(1 customer review)
Add to wishlist
Compare

$238.00

Estimated delivery on 13 July - 24 August, 2025
Compare

Items Included

  • ASUS NUC 13 Pro Barebone Kit
  • Power Adapter
  • US Power Cable
  • VESA Mount
  • Limited 3-Year Manufacturer Warranty
Key Features
  • 1.2 GHz Intel Core i3 6-Core (13th Gen)
  • 2 x 3200 MHz DDR4 SO-DIMM Slots
  • Integrated Intel UHD Graphics
  • M.2 2280 PCIe 4.0 | M.2 2242 PCIe / SATA
  • Wi-Fi 6E (802.11ax) | Bluetooth 5.3
  • 2.5G Ethernet Port
  • Thunderbolt 4 | USB-A 3.2 Gen 2
  • HDMI 2.1 | 3.5mm Audio
  • Includes US Power Cord & VESA Mount
  • Windows 11 OS Ready

Customize the ASUS NUC 13 Pro Barebone Kit to fit your needs and help you stay productive. Inside the compact chassis is a 13th Gen 1.2 GHz Intel Core i3-1315U 6-Core processor with integrated graphics to get you started.

The two DDR4 SO-DIMM slots support up to 64GB of memory. For storage, you have an M.2 2280 PCIe 4.0 slot alongside an M.2 SATA/PCIe 2242 slot. This system also includes built-in Wi-Fi 6E support and a 2.5G Ethernet port for high-speed internet access. Dual Thunderbolt 4 ports, along with two front-facing USB-A 3.2 Gen 2 ports, allow you to quickly transfer large videos, photos, and other files. The included VESA mount helps to maximize your space by allowing you to attach the NUC 13 Pro to almost any flat surface. This kit is Windows 11 OS ready. A US power cable is included.

Performance
The Intel Core i3-1315U processor powers applications with two Performance cores while four Efficient cores handle background tasks. The Performance cores have a base speed of 1.2 GHz and can be boosted up to 4.5 GHz. Integrated Intel UHD Graphics delivers quality visuals.
Expansion
There are two dual-channel DDR4-3200 SO-DIMM slots available, supporting up to 64GB. There is also an M.2 2280 PCIe 4.0 x4 slot and an M.2 2242 SATA/PCIe slot.
High-Speed USB

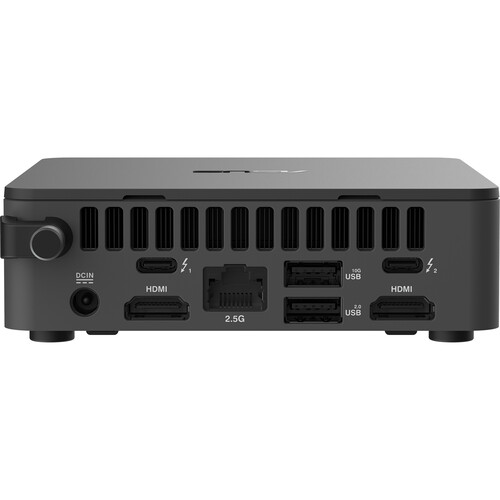

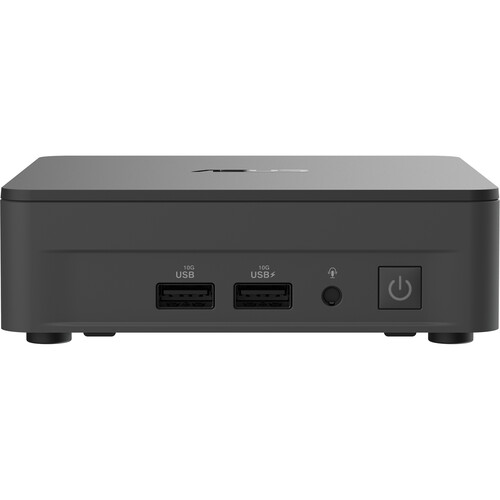

Two front-facing USB-A 3.2 Gen 2 ports allow you to transfer up to 10 Gb/s with compatible devices. The rear panel includes two Thunderbolt 4 ports alongside a USB-A 3.2 Gen 2 port.
Thunderbolt 4
Thunderbolt 4 is a hardware interface that utilizes the reversible USB-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.
Network Connectivity
Wi-Fi 6E (802.11ax) support provides access to the less congested 6 GHz band with compatible wireless networks. The 2.5G Ethernet port provides a fast and reliable wired internet connection.
Multi-Display Support
Enhance your workflow by connecting up four displays through the dual HDMI and two Thunderbolt 4 ports.
Category:
Operating System
No
Processor
Intel Core i3-1315U (13th Gen)
GPU
Intel UHD Graphics
Installed RAM
No
Total Installed Storage
No
Inputs/Outputs
2x USB-C (Thunderbolt 4)
3x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
2x HDMI 2.1
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Performance
Processor
Intel Core i3-1315U (13th Gen)
CPU
6-Core:
1.2 to 4.5 GHz Performance (2 Cores)
0.9 to 3.3 GHz Efficiency (4 Cores)
L3 Cache
10 MB
Graphics Type
Integrated
GPU
Intel UHD Graphics
Installed RAM
No
RAM Type
3200 MT/s DDR4 SO-DIMM
RAM Configuration / Capacity
RAM Needed / 2 Slots Supporting up to 64 GB
vPro Support
No
Storage and Expansion
Total Installed Storage
No
Storage Expansion
1x M.2 Slot 2280 (PCIe 4.0 x4) [Available]
1x M.2 Slot 2242 (SATA III / PCIe) [Available]
PCI Expansion
No
Inputs / Outputs
Inputs/Outputs
2x USB-C (Thunderbolt 4)
3x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
Display I/O
2x HDMI 2.1
Audio I/O
1x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
Network I/O
1x RJ45 (2.5Gb Ethernet)
Built-In Speakers
No
Built-In Microphones
No
Media/Memory Card Slot
No
Communications
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth
5.3
Keyboard & Mouse
Keyboard
No
Pointing Device
No
General
Security
Firmware TPM (Software-Based)
Power Supply
120 W with Barrel/Proprietary
VESA Mounting-Hole Pattern
No
Dimensions
4.6 x 4.4 x 1.45″ / 117 x 112 x 36.81 mm
Weight
1.65 lb / 0.75 kg
Packaging Info
Package Weight
3.25 lb
Box Dimensions (LxWxH)
7.75 x 6.75 x 4.2″
