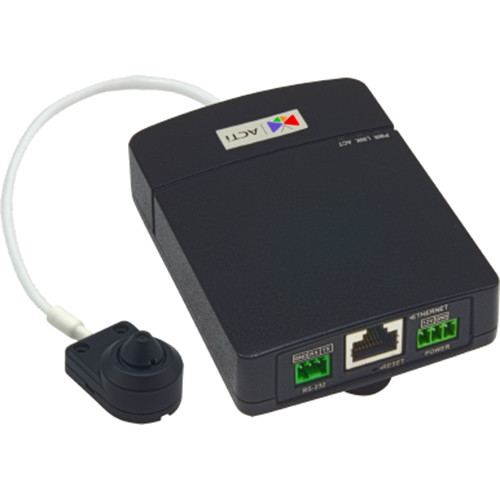

ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System


$535.00

Estimated delivery on 24 August - 5 October, 2025
Compare

Items Included

  • ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System
  • Mounting Rail
  • Power Terminal Block
  • Digital In/Out Terminal Block
  • Audio In/Out Terminal Block
  • RS-232 Terminal Block
  • Surface Mount
  • Flush Mount
  • Tilted Mount
  • Mounting Hardware
  • 2 x Drill Template
  • Limited 3-Year Manufacturer Warranty

The ACTi Q113 2MP Indoor L-Shape Covert Pinhole PoE Network Camera System includes a pinhole camera and main unit. The camera utilizes a 1/2.8″ progressive scan CMOS image sensor and 3.7mm fixed lens to capture images up to 1920 x 1080 at 30 fps. It offers Superior Low Light Sensitivity basic WDR of 75 dB for capturing clear images in low-light environments. The camera features a 39′ cable for connection to the main unit, which can be placed out of public view.

The main unit houses connections for the camera, network, power, digital input/output, and RS232 data port. It supports two-way audio and features a microSDHC / SDXC memory card slot (card not included) for local storage of recordings. This network camera system is suitable for discreet indoor video surveillance. The camera unit can be ceiling or wall mounted using flush, surface, or tilted mounts (included) or the height strip mount (available separately). The main unit can be directly mounted on the included mounting rail or on a DIN rail (available separately) for flexible installations.

1/2.8″ progressive scan CMOS image sensor
3.7 mm, f/2.5 fixed lens with horizontal viewing angle of 84.5°
Records up to 1920 x 1080 images at 30 fps
Superior Low Light Sensitivity and Basic WDR (75 dB)
microSDHC / SDXC memory card slot (card not included)
LED status indicators
EN50155 compliant vibration-proof casing
Category:
Device
Device Type
Indoor L-shape pinhole covert camera
Image Sensor
1/2.8″ progressive scan CMOS
Effective Pixels (H x V)
1944 x 1224 (2.38 MP)
Low Light Sensitivity
Superior
Minimum Illumination
Color: 0.1 lux at f/2.5 (30 IRE, 2400°K)
Electronic Shutter
1/5 to 1/32,000 sec (manual & auto mode)
Horizontal Resolution
1100 TVL
S/N Ratio
52 dB
Lens
Focal Length
3.7 mm
Aperture
f/2.5
Iris
Fixed
Focus
Fixed
Horizontal Viewing Angle
84.5°
Video
Compression
H.264 (Baseline / Main / High profile), MJPEG
Maximum Frame Rate vs. Resolution
30 fps at 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480
15 fps at 320 x 240
Multi-Streaming
Simultaneous dual streams based on two configurations
Bit Rate
28 kb/s to 6 Mb/s (per stream)
Bit Rate Mode
Constant, variable
Image Enhancement
Basic WDR: 75 dB
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto Gain Control
2D+3D Digital Noise Reduction
Flickerless
Privacy Masking
4 configurable regions
Text Overlay
User defined text on video
Image Orientation
Image flip and mirror
Audio
Compression
8 kHz, mono, PCM, 16-bit encoding; G.711
Audio In
Mic-in and line-in, terminal block
Audio Out
Line-out, terminal block
Network
Protocol
TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port
1 x RJ45 (10/100 Base-T) connector
Security
IP address filtering
HTTPs encryption
Password protected user levels
Anonymous login
IEEE802.1X network access control
Alarm
Alarm Trigger
Video motion detection (3 regions)
External device through digital input
Sound detection
Alarm Response
Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video or snapshot to FTP
Activate external device through digital output
Interface
Digital Input
1 x Terminal block
Digital Output
1 x Terminal block
Serial Port
1 x RS-232
Local Storage
microSDHC / SDXC memory card slot (card not included)
Integration
Unified Solution
Fully compatible with ACTi software
ISV Integration
ONVIF compliant
Software Development Kit (SDK) available
GPS
Manual setting
Firmware Access Browser
Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
General
Power Source
PoE Class 2 (IEEE802.3af)
12 VDC (adapter not included)
Power Consumption
PoE: 4.32 W
12 VDC: 3.6 W
Mount Type
Flush, surface, and tilted mount (included)
Height strip mount (available separately)
Temperature
Starting: -4 to 122°F (-20 to 50°C)
Operating: -22 to 140°F (-30 to 60°C)
Operating Humidity
10 to 85% RH
Approvals
CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B)
UL (for optional PoE injector and power adapter
Environmental Casing
Vibration proof (EN50155)
Dimensions
3.95 x 2.95 x 1.00″ (100.33 x 75.00 x 25.50 mm)
Weight
1.120 lb (0.508 kg)
Packaging Info
Package Weight
1.88 lb
Box Dimensions (LxWxH)
9.1 x 7.9 x 3.7″
