Type |

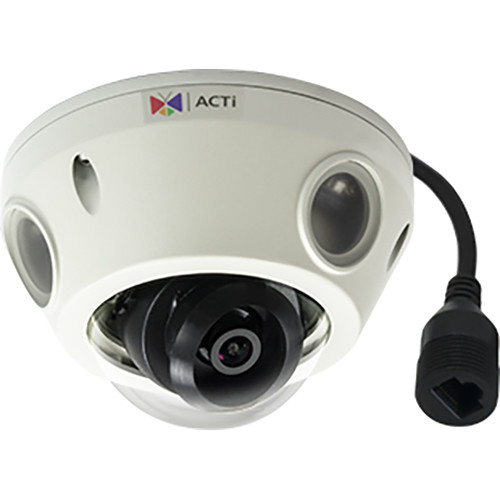

Mini dome
|
Maximum Resolution |
2 MP
|
Application |
Outdoor
|
Image Sensor |
Progressive scan CMOS
|
Sensor Size |
1/2.8″
|
Effective Pixels (H x V) |
1944 x 1224 (2.38 MP)
|
Day/Night |
Yes
|
Low Light Sensitivity |
Superior
|
Minimum Illumination |
Color: 0.1 lux at f/2.2 (30 IRE, 2400K)
B/W: 0 lux at f/2.2 (IR LED On)
|
Mechanical IR Cut Filter |
Yes
|
IR LEDs |
Adaptive IR LED
|
IR Range |
Up to 49′ (15 m)
|
Horizontal Resolution |
1100 TVL
|
S/N Ratio |
56 dB
|
Focal Length |
Fixed focal, 2.55mm
|
Aperture |
f/2.2
|
Iris |
Fixed iris
|
Focus |
Fixed focus
|
Lens Mount |
Board mount
|
Horizontal Viewing Angle |
110.3°
|
Viewing Angle Adjustment |
Pan: ±90°
Tilt: 35° to 90°, (lens FOV from horizon up to 3.65°)
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG
|
Maximum Frame Rate vs. Resolution |
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240
|
Multi-Streaming |
Simultaneous triple streams
|
Wide Dynamic Range |
Extreme WDR (145 dB)
|
Image Enhancement |
Digital image stabilizer, defogging
|
Digital Noise Reduction |
2D + 3D DNR
|
Privacy Masking |
4 configurable regions
|
Analytics |
Built-in:
Object based motion detection, tamper, digital image stabilizer, shock detection, PTZ auto tracking, line crossing, enter area, missing object, unattended object
VMS-Based:
Face detection, object based motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, direction detection, crowd detection, vehicle counting, heat map, speed estimation, license plate recognition (require PC-based or standalone IVS or ALPR Server)
|
Image Orientation |
Rotation
|
Audio |
1-way, mic-in, line-in
|
Network Protocol |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
|
Web Browser |
IE 8.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
|
Ethernet Port |
RJ-45
|
Local Storage |
microSDHC memory card slot (card not included)
|
Power Source |
PoE Class 2 (IEEE802.3af)
|
Power Consumption |
5.04 W (PoE)
|
Environmental Casing |
Weatherproof (IP68), Vandal proof (IK10), Vibration proof (EN50155)
|
Mount Type |
Surface, gang box, pendant, converter for NPT standard mount, wall mount
|
GPS |
Manual position setting
|
Starting Temperature |
-4 to 122°F (-20 to 50°C)
|
Operating Temperature |
-4 to 122°F (-20 to 50°C)
|
Approvals |
CE, FCC, IP68, IK10, NEMA 4X, EN50155, UL (for optional PoE injector)
|
ONVIF |
Yes, Profile S, Profile G
|
